What is Ball bearing, what is its structure and characteristics?

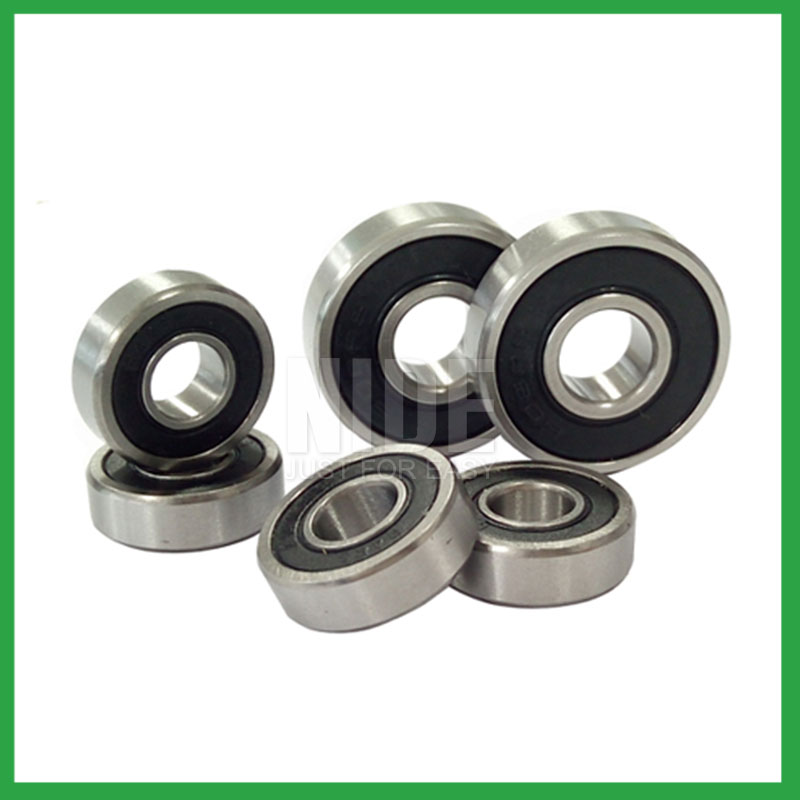

A ball bearing is a mechanical component designed to reduce friction and improve efficiency in rotational motion. It consists of a set of small metal balls held within a metal ring or cage.

Structure:

- Outer ring: The outer ring of a ball bearing provides a rigid surface for the bearing to be mounted on.

- Inner ring: The inner ring fits onto the rotating shaft and is responsible for the smooth rotation of the bearing.

- Balls: The balls are the rolling elements of the bearing and allow for smooth rotational motion.

- Cage: The cage holds the balls in place and prevents them from rubbing against each other.

- Seals/Shields: Optional components that protect the bearings from outside contaminants such as dirt, dust, and moisture.

- Lubricant: Ball bearings are typically filled with grease or oil to reduce friction and wear between the balls and raceways.

Characteristics:

- Low friction: The rolling elements of the ball bearing reduce friction, resulting in smoother and more efficient rotational motion.

- High precision: The smooth and uniform movement of the balls and rings allows for precise and accurate rotation, making ball bearings essential in machinery and equipment.

- High load capacity: Ball bearings can bear both radial and axial loads, making them suitable for various applications.

- Longevity: Properly maintained ball bearings have a long service life, making them a cost-effective choice for industrial and automotive applications.

- Versatility: Ball bearings come in various sizes, materials, and designs, making them suitable for a wide range of applications.

- Low noise and vibration: The rolling motion of the balls results in lower noise and vibration levels, making ball bearings ideal for use in sensitive equipment.



What is the function of Ball bearing and in which mechanical equipment is it commonly used?

The function of a ball bearing is to reduce friction and facilitate smooth rotation between two moving parts. It consists of two circular rings (inner and outer) with a series of small metal balls between them, allowing for low friction rolling motion.

Ball bearings are commonly used in a variety of mechanical equipment such as:

1. Automotive engines and transmissions

2. Industrial machines and equipment

3. Electric motors and generators

4. Household appliances

5. Agricultural machinery

6. Aerospace and defense equipment

7. Power tools

8. Robotics

9. Conveyor systems

10. Skateboards, bicycles, and roller skates.

What are the advantages and disadvantages of Ball bearing compared to other types of rolling bearings?

Advantages:

1. Lower friction and heat generation: Ball bearings have a smaller contact surface area compared to other types of bearings, resulting in lower friction and heat generation, which helps to increase the lifespan of the bearing.

2. High efficiency: Due to their low friction, ball bearings have high rotational speed and efficiency, making them suitable for high-speed applications.

3. Low noise and vibration: Ball bearings produce less noise and vibration compared to other types of bearings, making them ideal for applications where quiet operation is important.

4. Versatility: Ball bearings are available in a wide range of sizes, designs, and materials, making them suitable for a variety of applications and operating conditions.

5. Easy to install and maintain: Ball bearings are relatively simple in design and easy to install and maintain, requiring less frequent lubrication.

6. Lightweight: Ball bearings are usually smaller and lighter than other types of bearings, making them suitable for applications where weight is a critical factor.

Disadvantages:

1. Limited load capacity: Ball bearings have a limited capacity to carry heavy loads compared to other types of bearings.

2. Susceptible to damage: Due to their small contact surface, ball bearings are more susceptible to damage from shock, impact, and misalignment.

3. Prone to skidding: In high-speed applications, ball bearings can experience skidding, causing a decrease in efficiency and premature wear.

4. Higher cost: Ball bearings tend to be more expensive than other types of bearings, especially for high precision and high-performance applications.

5. Limited ability to handle radial and axial loads: Ball bearings are only suitable for applications with a primarily radial load, and they do not have the ability to handle heavy axial loads.

6. Limited temperature range: Ball bearings have a limited temperature range, typically between -40°C to 120°C, making them unsuitable for high-temperature applications.

If an exception is found in the ball bearing during use, what may be the reason for it?

During the operation of ball bearings, it is inevitable that some abnormal problems may occur, and the general reasons are as follows:

1. Poor Quality: One potential reason for a ball bearing to fail is poor quality. If the bearing was not made to the appropriate specifications or with subpar materials, it may not be able to withstand the forces put on it during use.

2. Lack of Lubrication: Ball bearings require proper lubrication to function properly and reduce friction. If the bearing is not properly lubricated, it can overheat and fail.

3. Contamination: If foreign particles such as dust, dirt, or debris enter the ball bearing, it can cause friction and wear on the components, leading to failure.

4. Improper Installation: Incorrect installation of the ball bearing, such as incorrect alignment or over-tightening, can put unnecessary stress on the bearing and cause it to fail prematurely.

5. Excessive Load: Ball bearings are designed to withstand a certain amount of load, depending on their size and construction. If the bearing is exposed to a load that exceeds its capacity, it can fail.

6. Misalignment: If the shaft and housing are not aligned properly, it can cause uneven load distribution on the ball bearing, leading to premature failure.

7. Fatigue: Constant use and repeated stress on the bearing can cause fatigue and wear and tear, leading to failure over time.

8. Corrosion: If the bearing is exposed to corrosive environments, such as high humidity or chemical substances, it can lead to rust and deterioration, causing the bearing to fail.

9. Damage during Transportation or Storage: The ball bearing may have been damaged during transportation or storage, compromising its structural integrity and causing it to fail during use.

10. Design Flaws: In some cases, the ball bearing may have been designed with flaws or defects that make it susceptible to failure. This can be due to design errors or manufacturing defects.

What factors need to be considered when choosing ball bearing, and how to correctly install and maintain it?

Factors to consider when choosing ball bearings:

1. Bearing Type: There are different types of ball bearings such as deep groove, angular contact, thrust, and self-aligning bearings. The type of bearing needed depends on the application and load requirements.

2. Load Capacity: This refers to the maximum amount of weight or force that the bearing can support. The load capacity needed will depend on the application and the expected load on the bearing.

3. Speed and Operating Conditions: The speed and operating conditions of the bearing, such as temperature and lubrication, are important to consider. The bearing must be able to withstand the speed and conditions without causing damage or failure.

4. Radial and Axial Loads: Bearings can handle both radial (perpendicular) and axial (parallel) loads. The type and combination of loads that the bearing will experience should be considered when choosing the right bearing.

5. Material: The material of the bearing affects its durability and performance. Common materials used for bearings include stainless steel, chrome steel, ceramic, and plastic.

6. Precision and Tolerance: Bearings come in varying levels of precision and tolerance. The level needed depends on the application and the required accuracy of the bearing.

7. Price: The cost of the bearing should also be considered, as it can vary depending on the type, size, and material.

How to correctly install and maintain ball bearings:

1. Inspection: Before installation, inspect the bearing for any damage or defects. Only use bearings that are in good condition.

2. Cleanliness: Ensure that all surfaces that come in contact with the bearing, such as the shaft and housing, are clean and free of dirt, debris, and rust.

3. Proper Fit: Make sure the bearing is the correct size and has the proper fit for the application. A loose or tight fit can cause premature failure.

4. Installation Tools: Use appropriate tools for the installation to avoid damaging the bearing. Never use a hammer or other impact tools to install bearings.

5. Lubrication: Proper lubrication is essential for the performance and longevity of the bearing. Refer to the manufacturer's recommendations for the type and amount of lubricant to use.

6. Alignment: The bearing should be properly aligned with the mating parts to avoid excess load and premature failure.

7. Monitoring and Maintenance: Regularly monitor the bearing for any signs of wear or damage and replace if necessary. Maintain proper lubrication and keep the bearing clean.

8. Storage: If storing bearings for long periods, make sure to protect them from dirt, moisture, and extreme temperatures.
