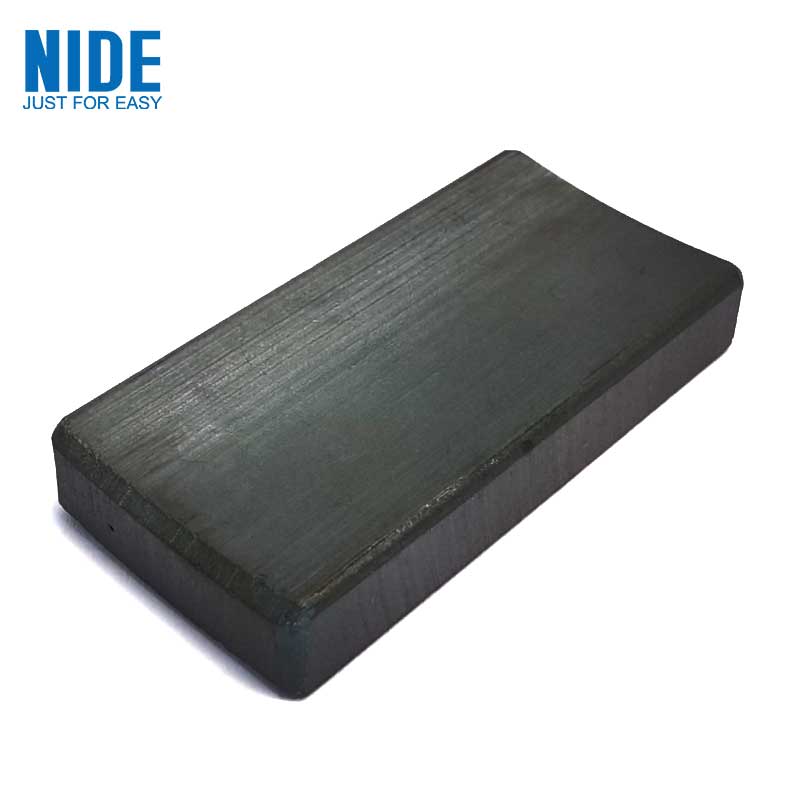

Wholesale Gasoline Generator Ferrite Magnet

NDPJ-CW-7878-50

Our Ferrite magnets are Mainly used in various motors, automobile motor, household appliances and electro-acoustic products.

 Categoryes:  Magnet

CONTACT US
Details

Ferrite permanent magnets are the cheapest type of magnetic material. Compared with other magnetic materials, they have relatively low magnetic properties but strong anti demagnetization ability and excellent corrosion resistance. They are commonly used in DC motors.


Working temperature

The maximum operating temperature of ferrite magnets is about 250 degrees Celsius or higher, and the Curie temperature is about 450 degrees Celsius.


Good corrosion

Ferrite magnets have good corrosion resistance and usually do not require coating or electroplating.


Our ferrite magnet products have stable performance and excellent quality.

Mainly used in various motors, household appliances and electro-acoustic products.

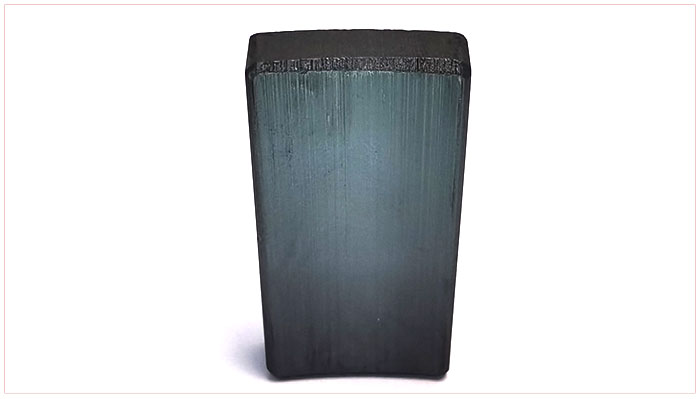

The shape of the product can be made into a cylindrical shape, a circular ring shape, a square shape and a tile shape according to customer needs.

Custom Arc Ceramic Ferrite Magnets

Custom Ferrite Magnet

DC motor ferrite magnet

 Gasoline Generator Ferrite Magnet

Wholesale Gasoline Generator Ferrite Magnet

Wholesale Gasoline Generator Ferrite Magnet

Custom Arc Ceramic Ferrite Magnets



Ferrite Magnet Grade Equivalent

Item

Grade

Br T(GS)

HCB
kA/m(kOe)

HCJ
kA/m(kOe)

(BH)  max
kJ/m³(MGOe)


IEC standard

IEC60404-8-1: 2001

Hard ferrite 32/25 SI-1-9

≥0.41

≥240

≥250

≥32.00

≥4100

≥3016

≥3142

≥4.02

Hard ferrite 24/35 SI-1-10

≥0.36

≥260

≥350

≥24.00

≥3600

≥3267

≥4398

≥3.02

Hard ferrite 25/38 SI-1-12

≥0.38

≥275

≥380

≥25.00

≥3800

≥3456

≥4775

≥3.14

Hard ferrite 31/30 SI-1-13

≥0.41

≥295

≥300

≥31.00

≥4100

≥3707

≥3770

≥3.896


NIDE
Standard

Q/74690217-4.1-2004



JC-Y3932

0.380-0.400

230-275

235-290

27.8-32.5

(3800-4000)

(2890-3456)

(2953-3644)

(3.49-4.10)

JC-Y3939

0.385-0.4000

270-290

280-320

28.5-31.8

(3800-4000)

(3391-3644)

(3518-4021)

(3.58-4.00)

JC-Y4041

0.395-0.415

275-295

310-340

28.2-32.0

(3950-4150)

(3456-3707)

(3895-4272)

(3.54-4.02)

JC-Y4127

0.400-0.424

200-225

205-228

30.0-33.6

(4000-4240)

(2514-2827)

(2577-2865)

(3.77-4.22)

JC-Y4231

0.410-0.430

220-260

255-270

31.8-35.5

(4100-4300)

(2765-3267)

(2827-3391)

(4.00-4.46)

JC-Y3744

0.360-0.380

265-288

330-360

24.0-28.0

(3600-3800)

(3330-3620)

(4147-4524)

(3.02-3.53)

JC-Y3849

0.370-0.390

271-305

370-400

26.0-30.2

(3700-3900)

(3405-3833)

(4649-5026)

(3.27-3.80)

JC-Y4240

0.410-0.430

291-314

306.1-330

32.0-35.4

(4100-4300)

(3657-3946)

(3846-4147)

(4.02-4.45)

 We can offer a variety of NdFeB Magnet and Ferrite Magnet, If you need special magnetic tiles, we can also customize according to your needs.

About Motor component and  accessories



NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
