1. Thermal protector application

17AM-X S-shaped wire thermal protector has many advantages, such as sensitive current tripping, accurate temperature control and precise tripping time. It is widely used in automobile motors, washing machine motors, vacuum cleaner motors, small household appliance series excitation motors, garden equipment, etc.

2. Thermal protector structure

17AM-X S-shaped wire protector is a protective device with triple protection of temperature, current and time, which can accurately control the damage of motor caused by blocking or excessive current. The product has long service life and high reliability. The product uses bimetal materials with good electrical conductivity to ensure it can withstand the requirements of normal circuit current, unique combination of bimetal disc and resistivity wire,guarantees very precise tripping times thus prevents too high motor temperature to cause motor burn-out.

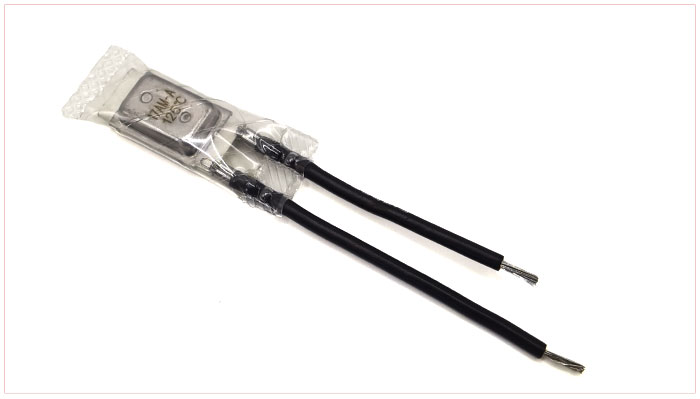

3. Thermal protector picture

Notes:

1 The heating rate of action temperature detection should be controlled to 1 °C/1min;

2 The protector shell shall not withstand strong impact and pressure during use.

Customized Thermal Protector Structure:

1. Customized lead wire: Customized wire material, length and color according to customer needs

2. Customized metal shell: Customize different material shells according to customer needs, including plastic shells, iron shells, stainless steel shells, and other metal shells.

3. Customized heat shrinkable sleeve: Customize different high temperature resistant polyester heat shrinkable sleeves according to customer needs

About Motor component and  accessories

NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
