Model:NDPJ-RBHQ-78
KSD9700 temperature control switch is a kind of shaped bimetal as a heat sensitive reaction element. When the temperature or current increases, the heat generated is transferred to the bimetal disc. When the temperature reaches a predetermined value, it will act quickly to make the contact Disconnect, cut off the circuit.

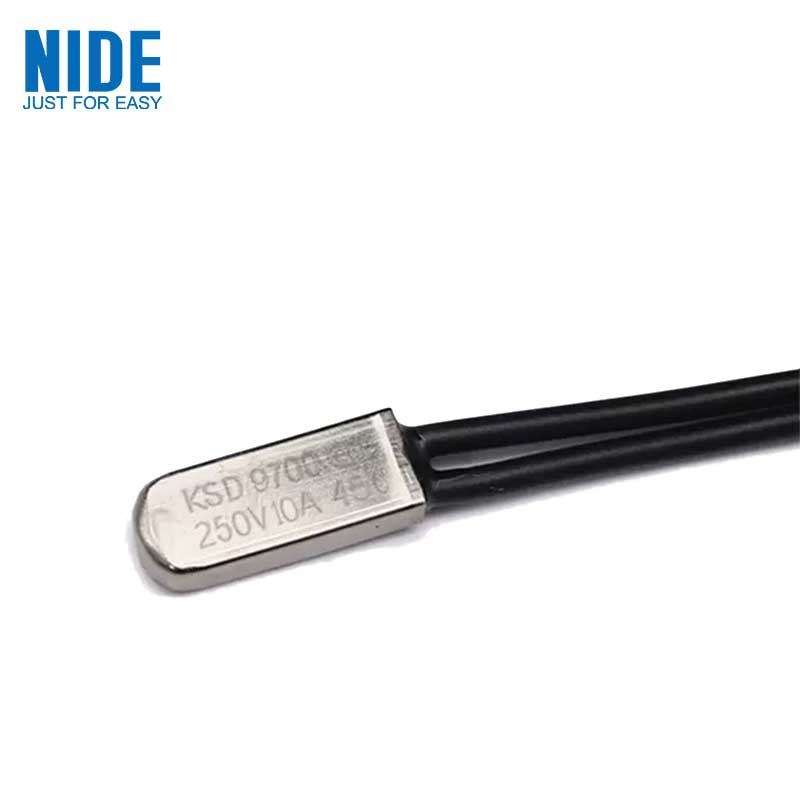

Metal shell KSD9700 temperature control switch thermal protector 5A250V-Thermal protector thermostat temperature switch
Our KSD9700 thermal protector can quickly sense temperature, provide overvoltage protection, meet environmental protection standards, and is safe and reliable. It has the characteristics of stable performance, high precision, small size, light weight, high reliability, long life, and less trouble to radio. It is widely used in household water dispensers, disinfection cabinets, microwave ovens, electric coffee pots, electric cookers, air conditioners, etc. Electric heating appliances.
KSD9700 temperature control switch is a kind of shaped bimetal as a heat sensitive reaction element. When the temperature or current increases, the heat generated is transferred to the bimetal disc. When the temperature reaches a predetermined value, it will act quickly to make the contact Disconnect, cut off the circuit. When the temperature drops to a predetermined reset setting value, the bimetallic disc recovers quickly, closing the contacts and connecting the circuit. The temperature control shell adopts high temperature resistant engineering plastic shell, which has the characteristics of small size, high sensitivity, large contact capacity, fast heat transfer speed, long life, and convenient installation.
Product parameter
| Product name: | 35 degree 5A250V temperature thermal protector |
| Type | Overheat protector/ Thermal fuse |
| Custom processing: | Yes |
| Size | custmoized |
| Temperature control | range 50-180 (℃) (special specifications can be customized according to customer requirements) |
| Reset temperature: | 5℃-50℃ lower than rated operating temperature, reset tolerance ±15℃, |
| Tolerance | ±5℃ |
| Maximum working current: | 5A (8A) |
| Working voltage | 250V |
| Type | Shape Wrap |
| Fusing speed | M/medium speed |
| Contact life: | >10000 times Contact resistance ≤50mΩ |
| Dimensions: | plastic shell 21×8×5, metal shell 21×7.2×3.5 (special specifications can be customized according to customer requirements) |
| Used | Household appliances, household appliances, machinery and equipment |

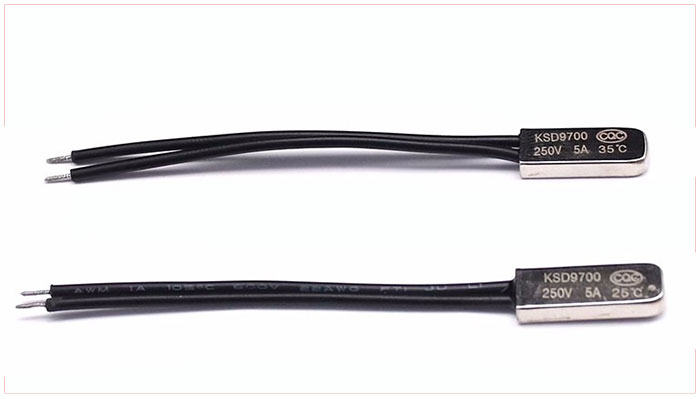

Picture show
About Motor component and accessories
NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
