Model:NDPJ-HXQ-232
The commutator is apply to alternator motor, automotive industry, power tools, household appliances, and other motors.
Categoryes: Commutator
7P Electric Motor Commutator Armature Hook Collector Spare Parts
Technical requirement of commutator:
1. Voltage test: bar to bar 500V, bar to bore 1500V, without breakdown and flashing.
2. Spin test: do spin test for the commutator under 140 centigrade, the speed is 5000RPM, the test continues for 3min. After testing, the deviation of outer diameter is less than 0.015, the deviation between bar and bar is less than 0.005.
3. Insulation resistance: 500V, more than 50MΩ
Commutator Application
The commutator is apply to alternator motor, automotive industry, power tools, household appliances, and other motors.
Technical parameter of commutator:
| Product name: | 7P Electric Motor Commutator |
| Materials: | 0.03% or 0.08% sliver copper or customized |
| Slices : | 7P |

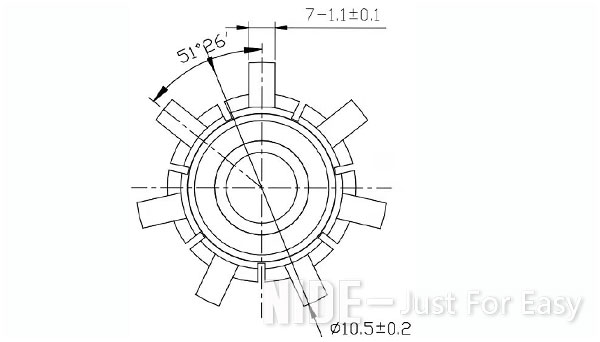

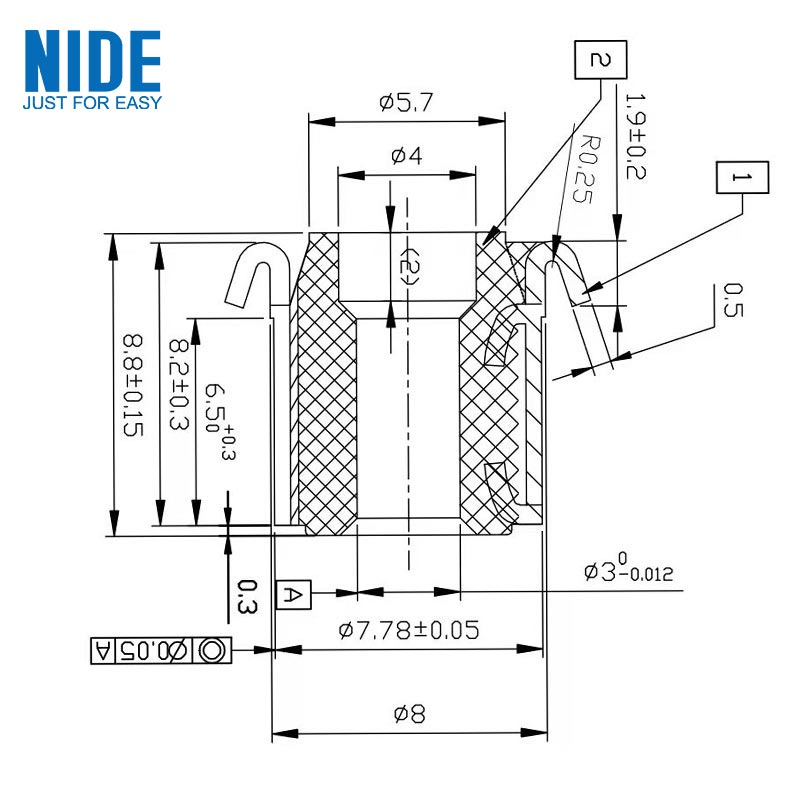

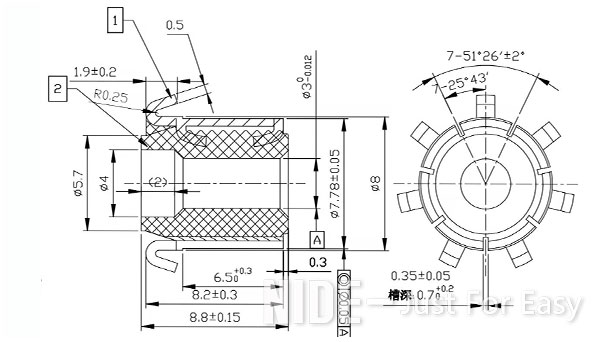

| Dimension: | 3x8x8.8mm or Customized |
| Commutator type: | Hook type |
| Production capacity: | 1000000pcs/month |

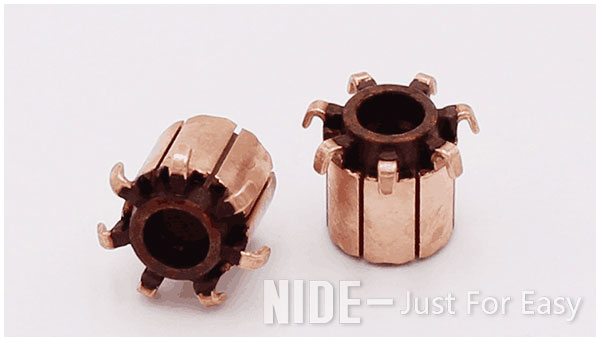

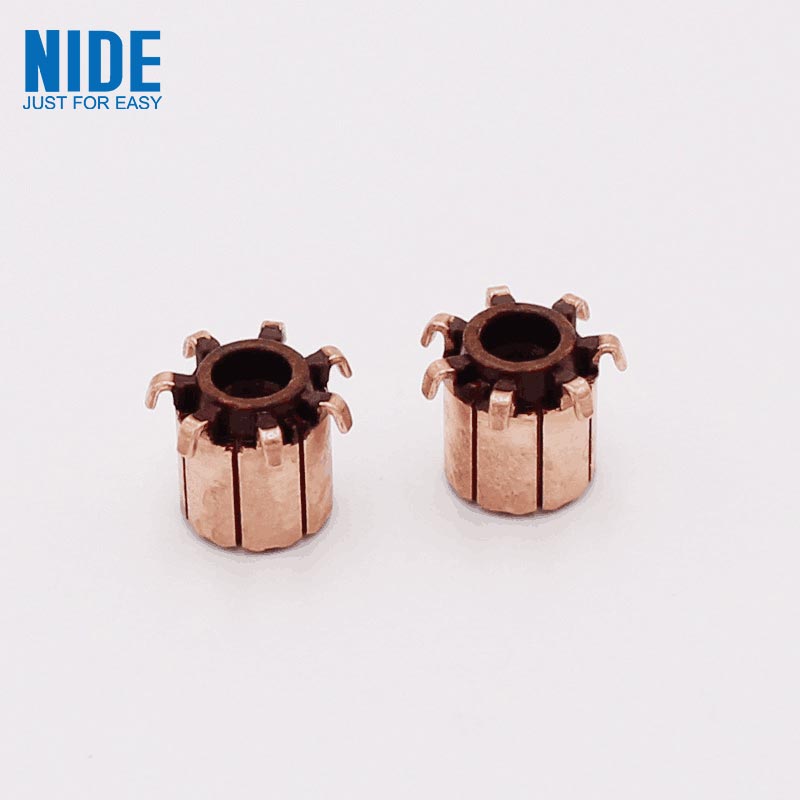

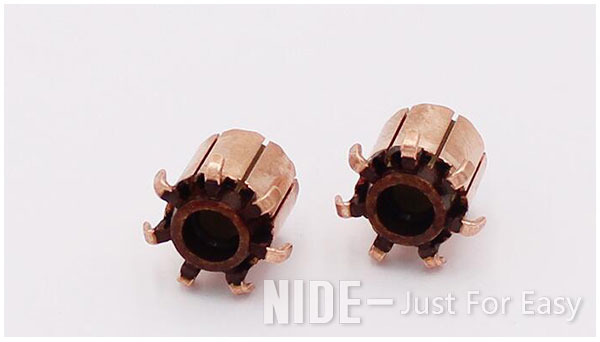

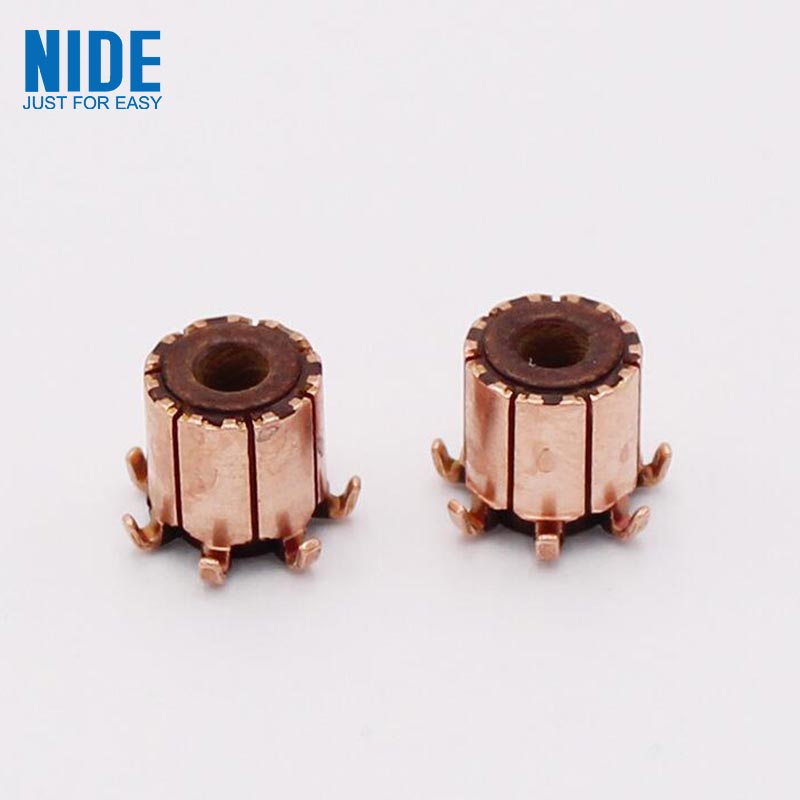

Commutator Picture Show
Information needed for commutator inquiry:
It will be better if customer could send us detailed drawing including below information.
1. Commutator dimension: OD, ID, total height, and copper height, bar number.
2. Commutator type: hook type, raiser type or planner
3. Copper material: Agcu/ Cu
4. Commutator applications
5. Required quantity
6. Copper bush needed or not
7. Other technical requirement.
Nide produces more than 1200 different types of motor commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.
Besides, we can supply the full range of motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper material, shaft, magnet, fan, motor cover,etc.
