1.2UF Electric Fan Capacitor / CBB61 AC Motor Capacitor 450V

Model:NDPJ-CBB61-1

The CBB61 capacitors are mainly used in electric fans, mahjong machines, bread machines, paper shredders, range hoods, etc.

CONTACT US
Details

1.2UF Electric Fan Capacitor CBB61 AC Motor Capacitor 450V





CBB61 capacitor is a kind of AC motor running & starting capacitor. Its shape is generally rectangular. It is characterized by large capacity, low loss, strong moisture resistance, good reliability and excellent electrical performance. The ambient temperature suitable for use is -40℃~+85℃. Our company can develop, design and produce products that meet various special needs according to the different needs of customers.



Capacitor Application :

CBB61 capacitors are mainly used in electric fans, mahjong machines, bread machines, paper shredders, range hoods, etc.




Capacitor Feature:



1. Encapsulated in plastic shell, with good appearance consistency.

2. Small loss at high frequency, suitable for larger current.

3. High insulation resistance, good self-healing and long life.



Capacitor Structure:

1. The capacitor core is wound by metallized organic film.

2. Plastic shell, flame retardant epoxy resin potting, single capacitor core or multi-capacitor core can be installed in one shell.

3. The installation components include plastic ears and iron ears.

4. The lead-out methods include plastic-encapsulated leads, tinned copper pins, quick-connect terminals, soldering lugs, etc.



Capacitor Parameter

Product Name:  AC Motor Capacitor
Model:  CBB61
Material: Metal Plastic;
Voltage:  250VAC、370VAC、440VAC、450VAC 50/60Hz
Max.TEMP:  70°C
Size: 38X27X16MM
Reference standards:  GB/T 3667.1 ( IEC60252-1 )
Climatic category:  40/ 70/21、40/85/21
Class of operation   Class B (10000h) Class C (3000h)
Class of safety protection   S0 /S3
Capacitance range   1~35μ F
Capacitance tolerance  土5%、土10%、土15%
Dissipation factor 20x10^(-4) ( 100Hz, 20°C )
Test voltage terminalto terminal UTT 2Un for 2 seconds
Test voltage terminal to caseUTC (2Un+ 1000)VAC or 2000VAC- 50Hz for 60 seconds
RC ≥3000s (100Hz, 20°C,1min)



Capacitor Picture:

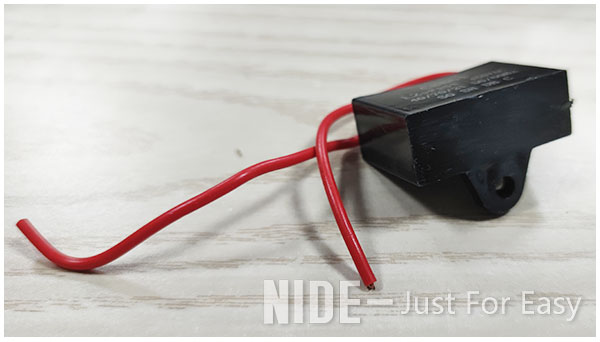

1.2UF Electric Fan Capacitor .jpg

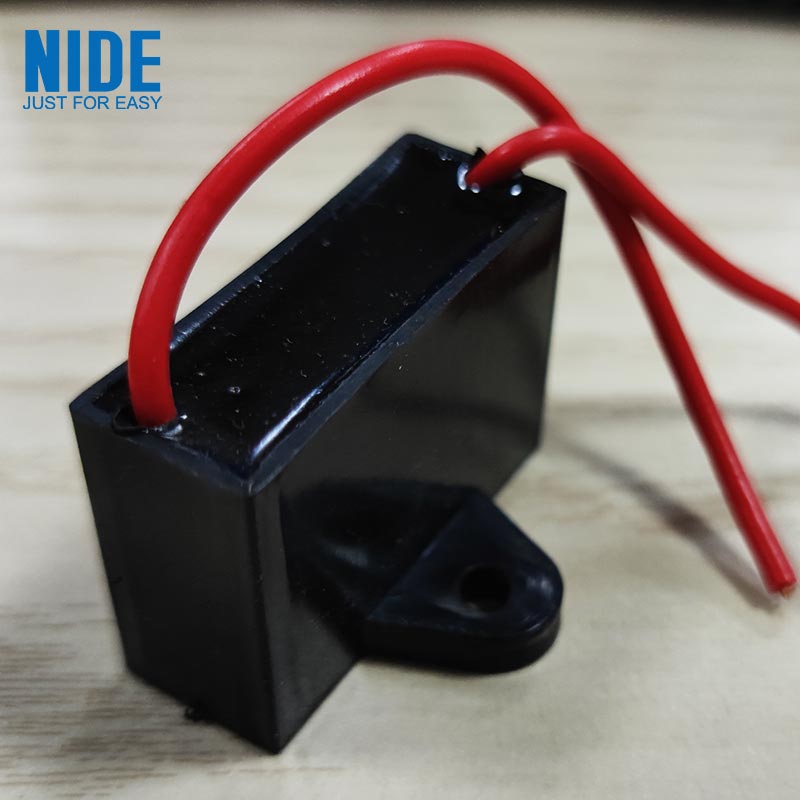

1.2UF Electric Fan Capacitor CBB61.jpg

AC motor 1.2UF Electric Fan Capacitor .jpg

450V AC motor Capacitor .jpg


Capacitor Customized:

AC Motor Capactior-5

AC Motor Capactior-7
