28P Juicer mixer switch motor commutator

 Model:NDPJ-HXQ-1003

28P Juicer mixer switch motor commutator 8*25.5*18.The segmented commutator is suitable for Juicer mixer switch motor.



Categoryes: Commutator

CONTACT US
Details

28P Juicer mixer switch motor commutator 8*25.5*18 Hook Commutator



Commutator Introduction

The segmented commutator is suitable for Juicer mixer switch motor.



Each segment or bar on the commutator conveys current to a particular coil. To enhance efficiency, the contact surfaces are made from a conductive material, usually copper. The bars are also separated from each other using a non-conductive material such as mica. This helps prevent shorting.



Commutator Parameters

Product name Juicer mixer motor commutator / collector
Material Copper, glass fiber
Outer diameter 25.5
Inner hole 8
Total height  18
Number of pieces 28
Custom processing: Yes
Application:  Household appliances motor component, blenders, juicers.

Commutator Working Principle

Commutator is found in the back of the motor's housing and forms part of the armature assembly. Usually round and segmented, its main function is to transfer current to the armature in the required sequence. That is made possible by the segments or copper bars on which the motor brushes slide.

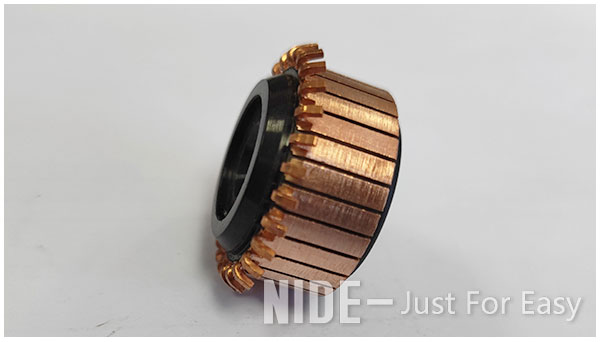

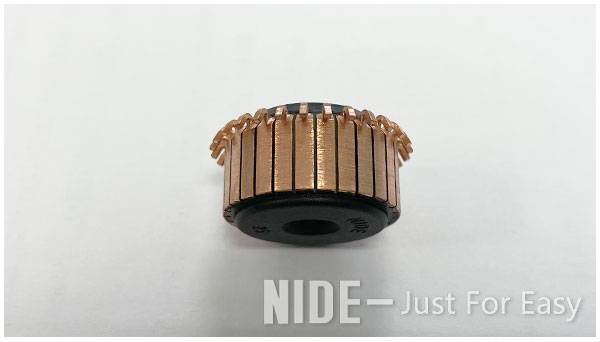

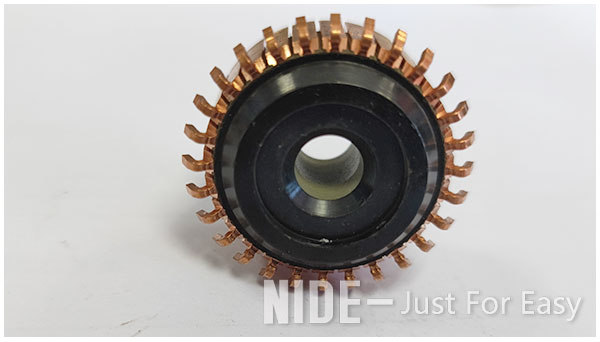

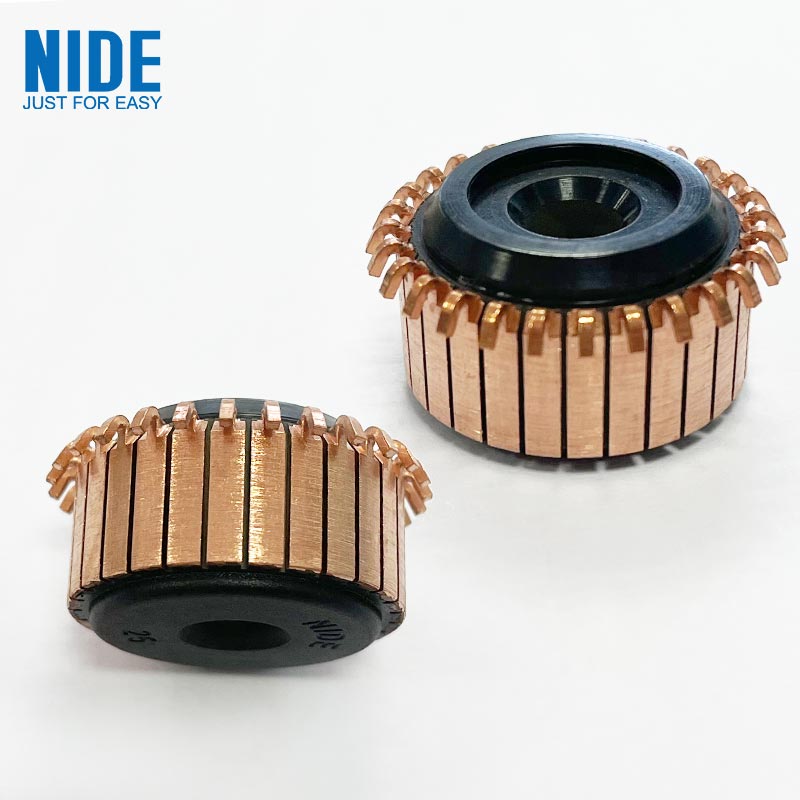

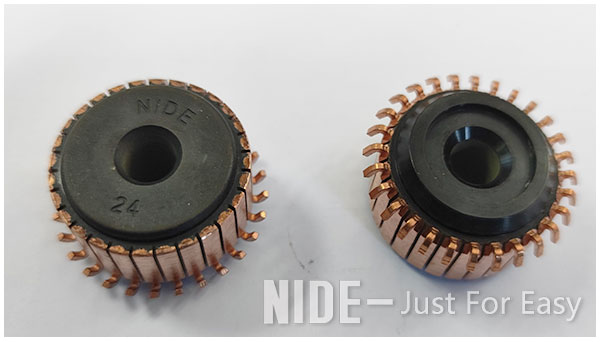

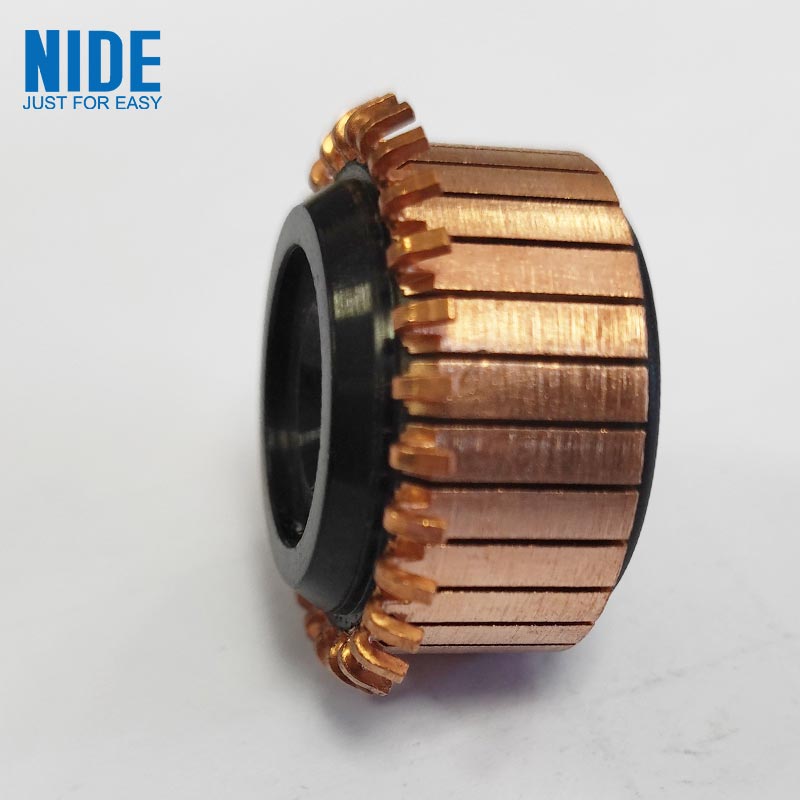

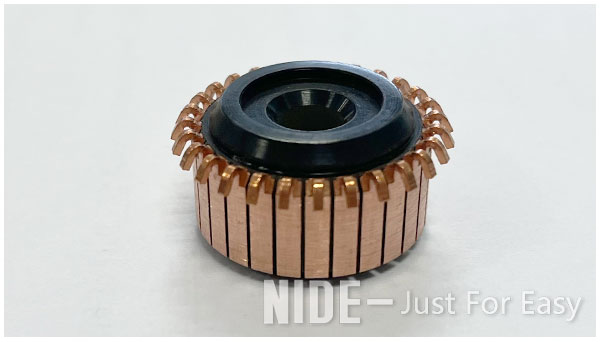

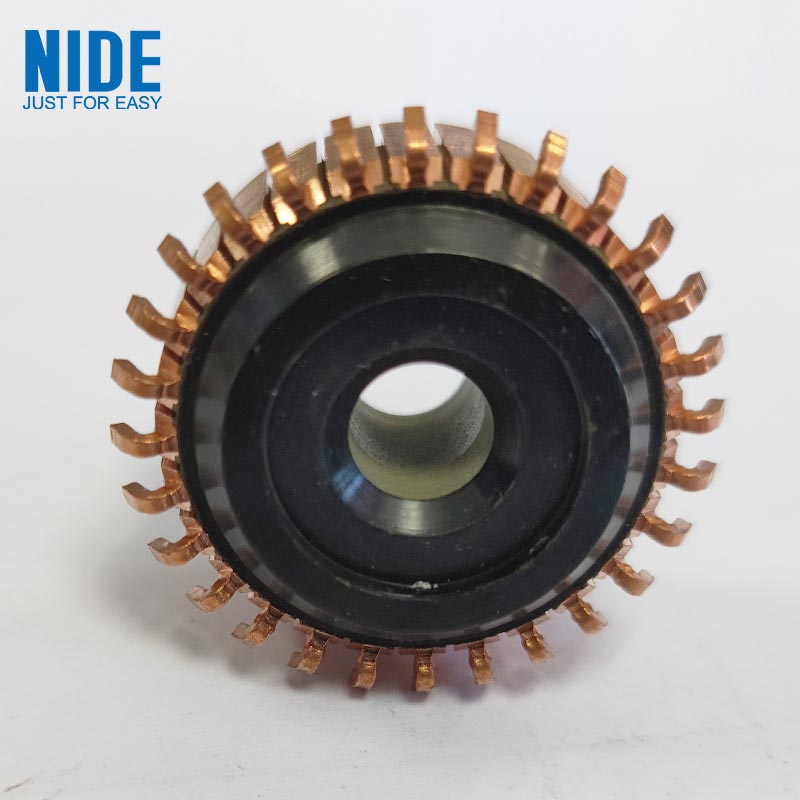

Commutator Picture

 Juicer COMMUTATOR

MIXER COMMUTATR

hook commutator

DC motor commutator

commutator manufacturer

Information needed for commutator inquiry:
It will be better if customer could send us detailed drawing including below information.
1. Commutator dimension: OD, ID, total height, and copper height, bar number.
2. Commutator type: hook type, raiser type or planner
3. Copper material: Agcu/ Cu
4. Commutator applications
5. Required quantity
6. Copper bush needed or not

7. Other technical requirement.



Nide produces more than 1200 different types of motor commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.





Besides, we can supply the full range of motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper material, shaft, magnet, fan, motor cover,etc.
