12P Water Pump DC Motor Commutator For Automobile Motor spare parts 18.9*8*15.65MM

The water pump motor commutator is efficient, durable, and waterproof. Comes in a compact design, with low noise levels and a long service life.

Commutator Technical Parameter

Commutator Application

The commutators are widely used in power tools, household appliances, automobiles, motorcycle motors, industrial manufacturing, aviation and other fields.

Commutator Type

Our commutators mainly include hook commutator, slot commutator, plane commutator, mechanical commutator, semi-plastic commutator, all-plastic commutator, etc.

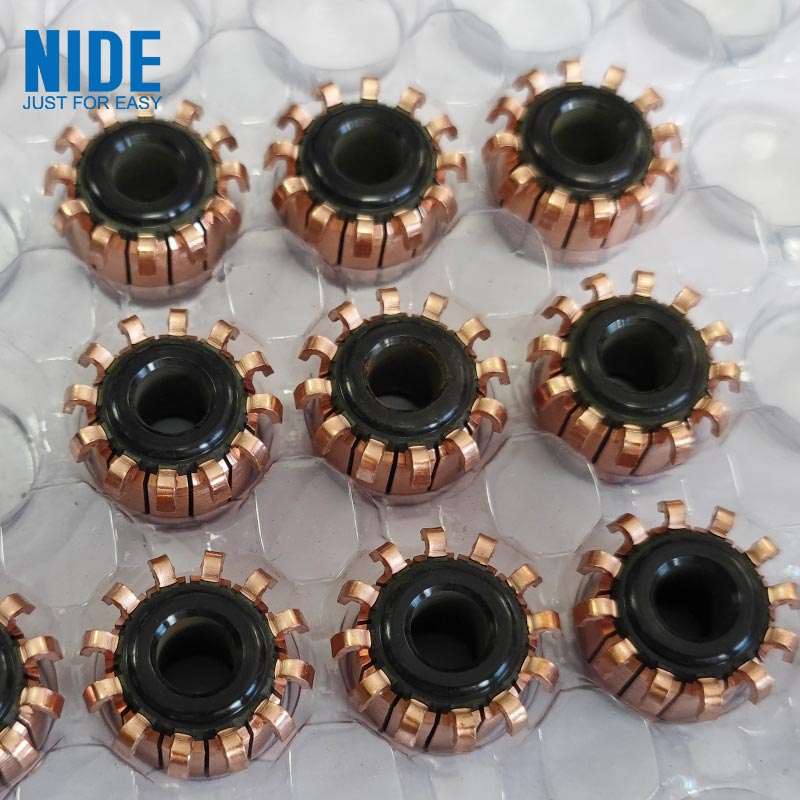

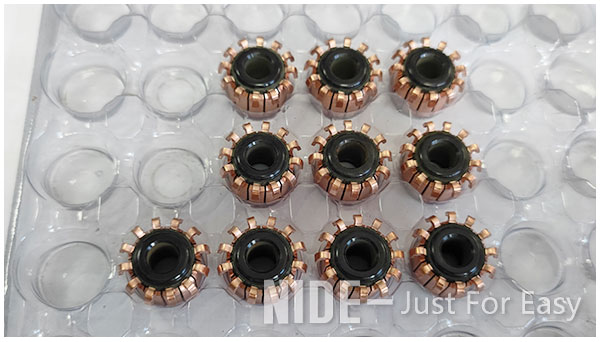

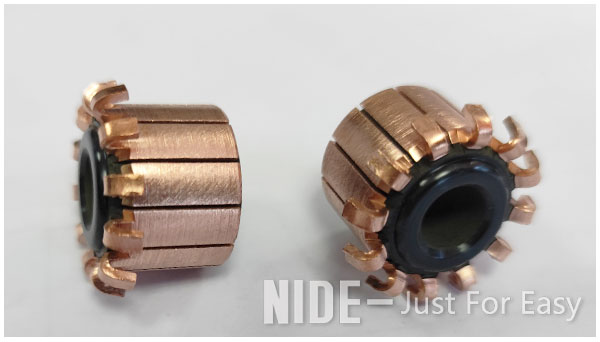

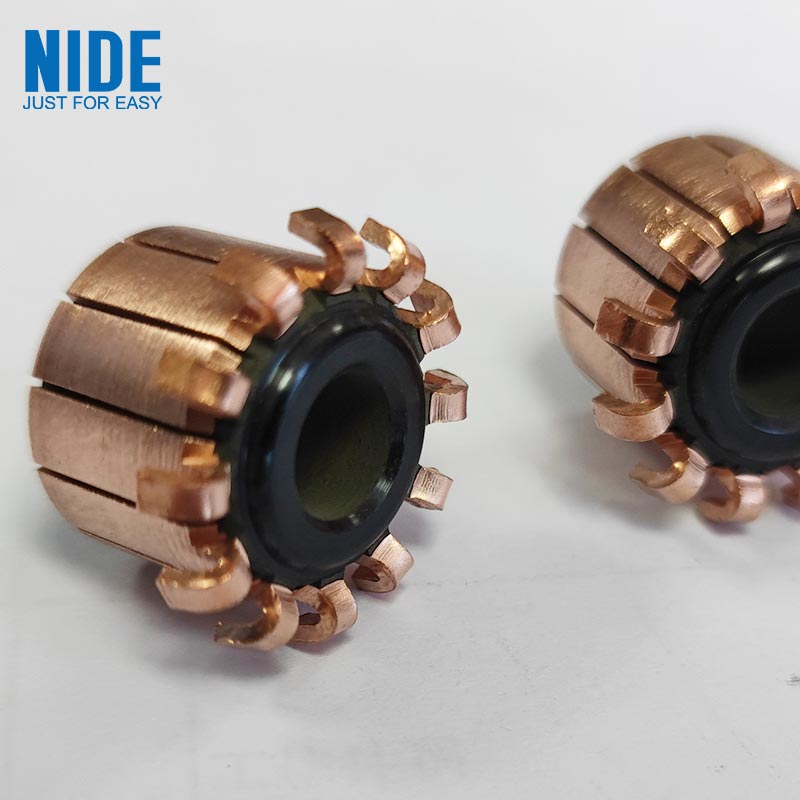

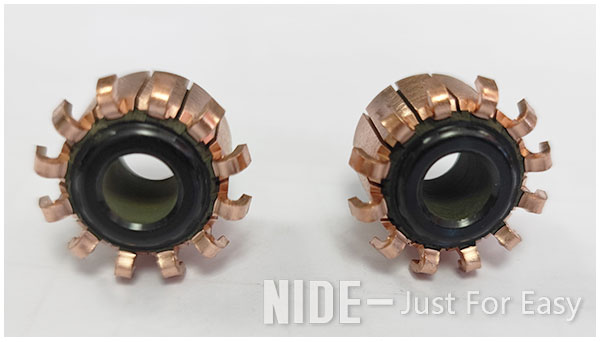

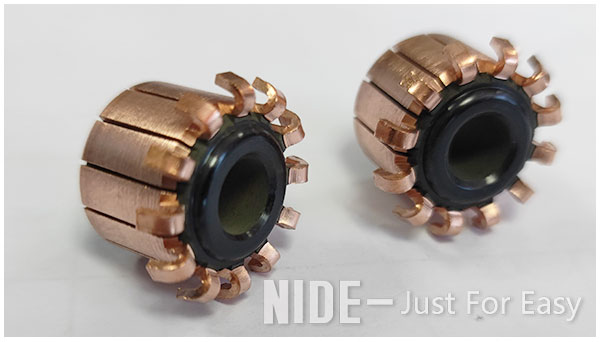

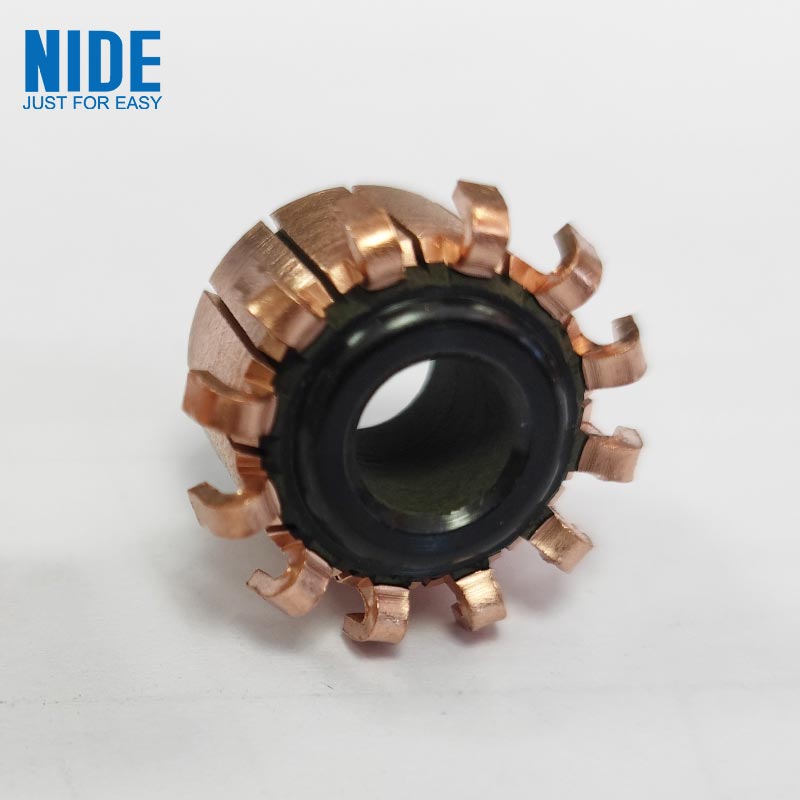

Commutator Picture Show

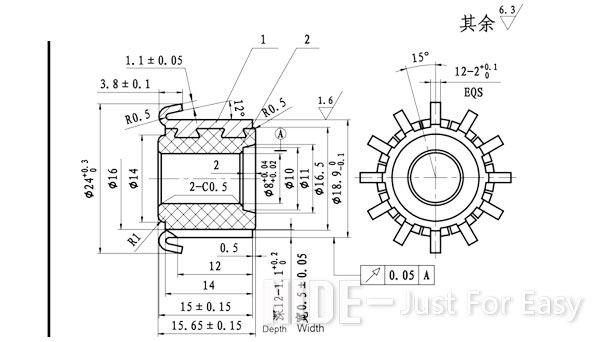

Commutator Drawing

The above commutator data is for reference only. NIDE can customize various types of commutators according to customer needs. If you need it, please feel free to contact us.

Information needed for commutator inquiry:
It will be better if customer could send us detailed drawing including below information.
1. Commutator dimension: OD, ID, total height, and copper height, bar number.
2. Commutator type: hook type, raiser type or planner
3. Copper material: Agcu/ Cu
4. Commutator applications
5. Required quantity
6. Copper bush needed or not

7. Other technical requirement.

Nide produces more than 1200 different types of motor commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.

Besides, we can supply the full range of motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper material, shaft, magnet, fan, motor cover,etc.
