Model:NDPJ-JYZ-4
DM Class F insulation paper is suitable for slot insulation, inter-turn insulation and pad insulation in motors and electrical appliances.
Categoryes: Insulation paper

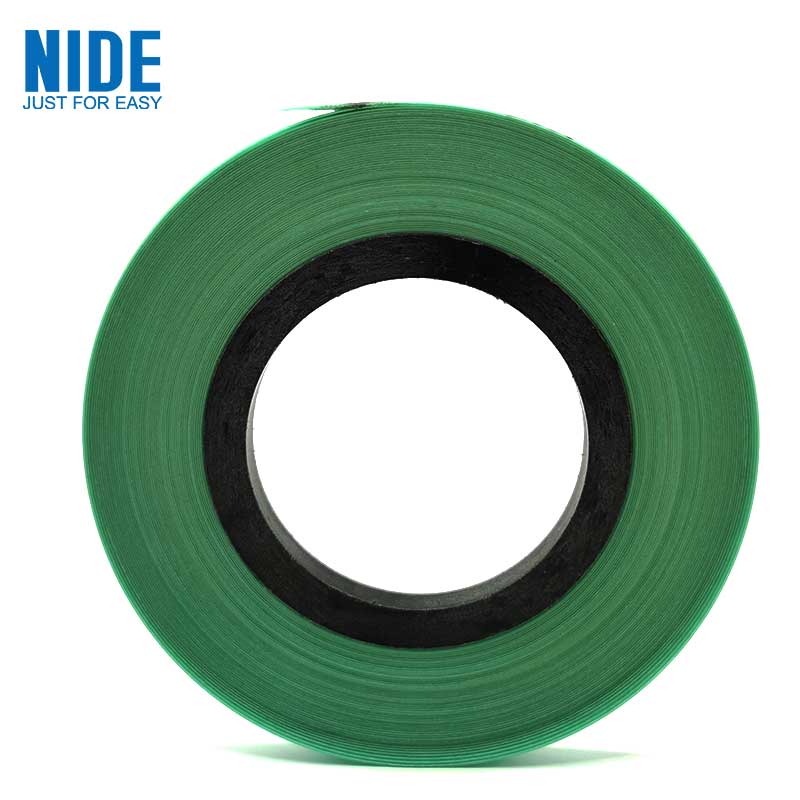

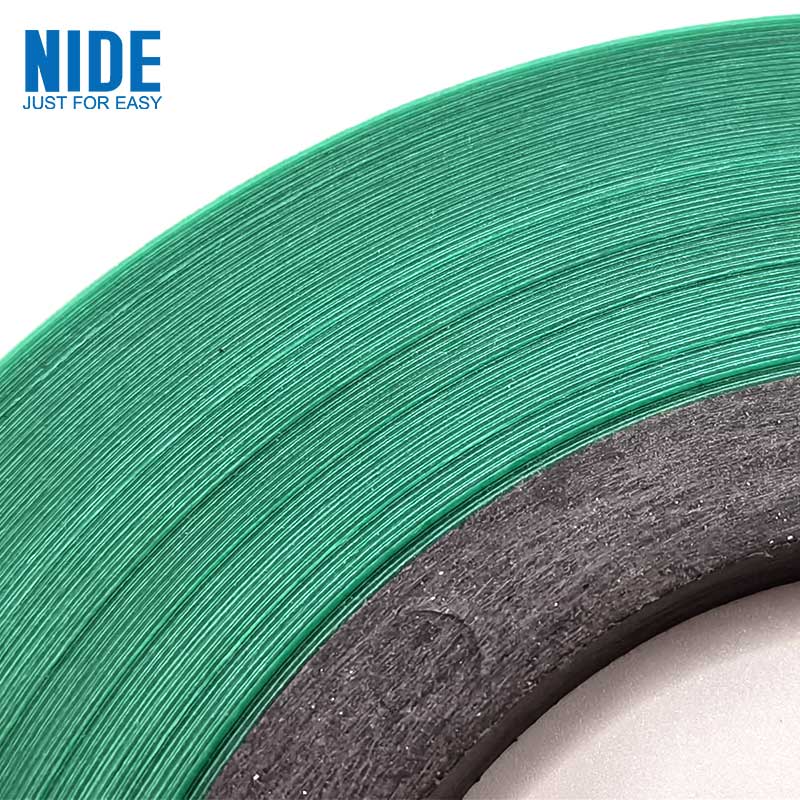

F class DM Insulation Material Stator slot Insulation Paper for Motor Coil Winding
DM insulation paper material characteristics and uses:
DM insulation paper is a two-layer soft composite material bonded by polyester film and polyester fiber non-woven fabric;
Heat resistance grade F;
Has excellent mechanical properties, dielectric properties and adhesive properties;
It is suitable for slot insulation, inter-turn insulation and pad insulation in motors and electrical appliances.
Precautions when installing motor insulation paper
The correct orientation of the smooth side of the motor insulation paper can improve the insulation performance of the motor and protect the motor casing and windings, which is crucial for the normal operation of the motor. During the installation process of motor insulation paper, you must pay attention to the following points to ensure the quality of motor insulation paper and installation quality and ensure the normal operation of the motor.
1. The motor insulation paper must be inspected before being installed on the motor. If the motor insulation paper is found to be wrinkled or damaged, it must be replaced in time.
2. Before installing the insulation paper on the motor, the motor and windings need to be cleaned. If there are impurities such as oil or dust, it will affect the normal operation of the motor.
3. After the motor insulation paper is installed, the motor needs to be tested for insulation to ensure that the motor’s insulation performance meets the requirements.
|
Properties |
Unit |
Parameter |
|||||||||
|
Insulation paper thickness |
MM |
0.09 |
0.11 |
0.15 |
0.19 |
0.20 |
0.23 |
0.25 |
0.30 |
0.36 |
0.41 |
|
Thickness deviation |
MM |
±0.01 |
±0.01 |
±0.02 |
±0.02 |
±0.02 |
±0.02 |
±0.03 |
±0.03 |
±0.04 |
±0.04 |
|
Grammage and deviation |
GSM |
93±9 |
113±11 |
183±18 |
218±22 |
253±25 |
288±29 |
308±31 |
393±39 |
463±46 |
533±53 |
|
Film thickness |
MM |
0.036 |
0.050 |
0.100 |
0.125 |
0.150 |
0.175 |
0.190 |
0.250 |
0.300 |
0.350 |
|
Breakdown voltage |
KV |
≥5 |
≥6 |
≥9 |
≥10 |
≥11 |
≥13 |
≥14 |
≥16 |
≥18 |
≥22 |
|
Tensile strength (MD) |
N/CM |
≥60 |
≥80 |
≥150 |
≥190 |
≥220 |
≥250 |
≥280 |
≥330 |
≥350 |
≥380 |
|
Tensile strength (TD) |
N/CM |
≥40 |
≥70 |
≥110 |
≥140 |
≥150 |
≥160 |
≥180 |
≥280 |
≥300 |
≥330 |
|
Tensile strength after folding (MD) |
N/CM |
≥40 |
≥70 |
≥110 |
≥140 |
≥165 |
≥190 |
≥240 |
≥280 |
≥300 |
≥330 |
|
Tensile strength after folding (TD) |
N/CM |
≥20 |
≥50 |
≥90 |
≥110 |
≥115 |
≥120 |
≥130 |
≥180 |
≥200 |
≥230 |

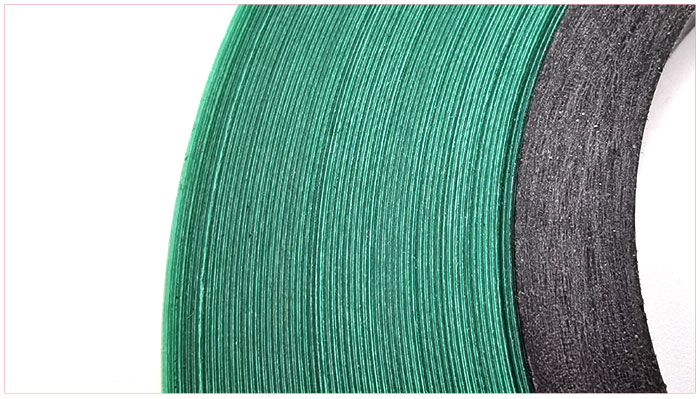

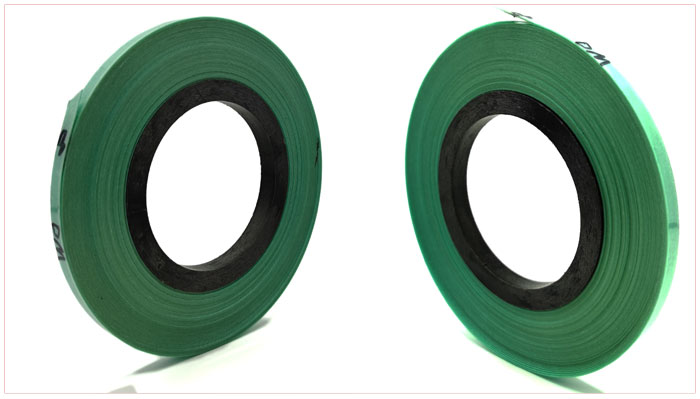

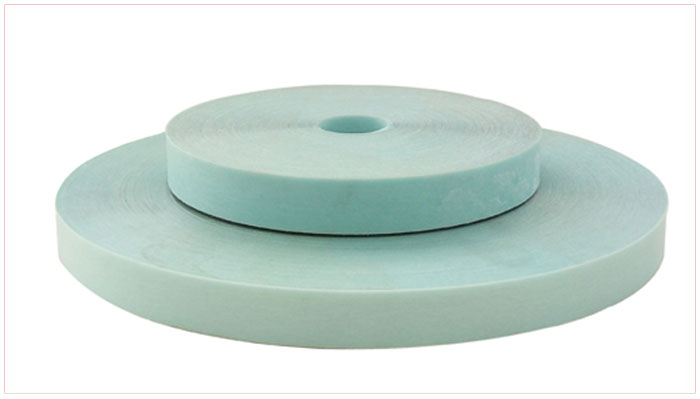

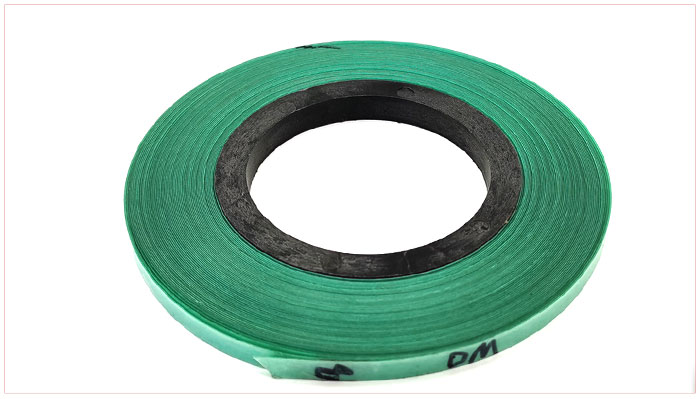

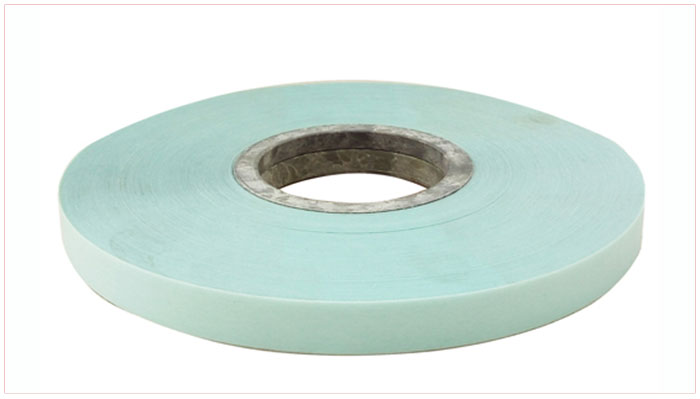

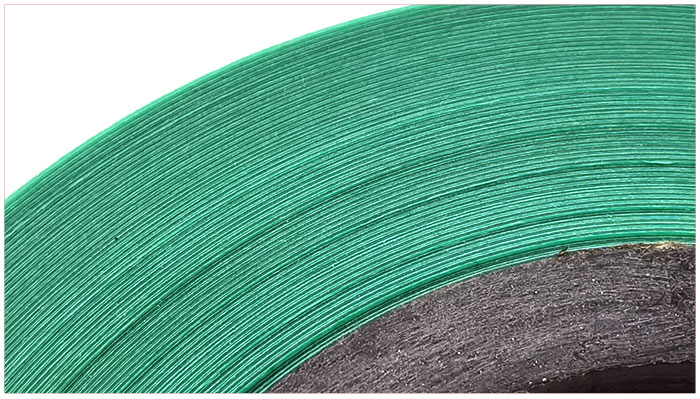

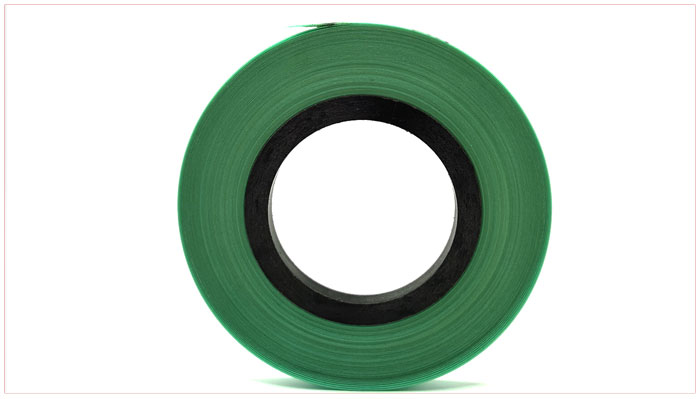

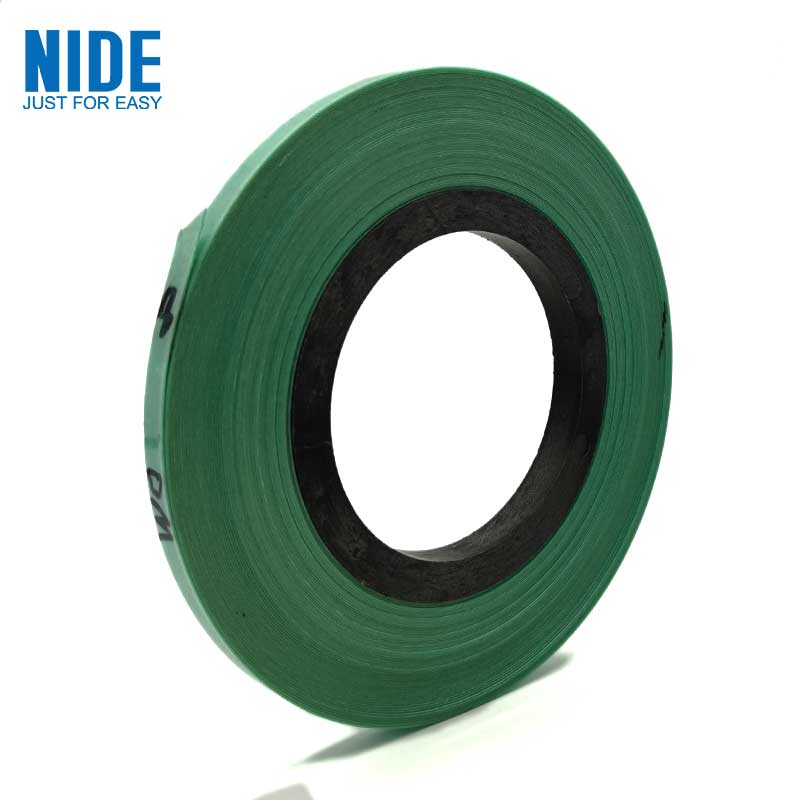

DM insulation paper picture show
Information needed for insulation material inquiry
It will be better if customer could send us detailed drawing including below information.
a. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, NHN , NMN ,PM ,Red Vulcanized Fiber,)
b. Insulation material dimension: width, thickness, tolerance.
c. Insulation material thermal class: Class F, Class E, Class B, Class H , Class C
d. Insulation material applications
e. Required quantity: normally its weight
f. Other technical requirement.
We also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc
Besides, we can supply the full range of motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper material, shaft, magnet, fan, motor cover,etc.
