Model:NDPJ-JYZ-9
NM insulation paper is suitable for slot insulation, inter-turn insulation and pad insulation in motors and electrical appliances.
Categoryes: Insulation paper

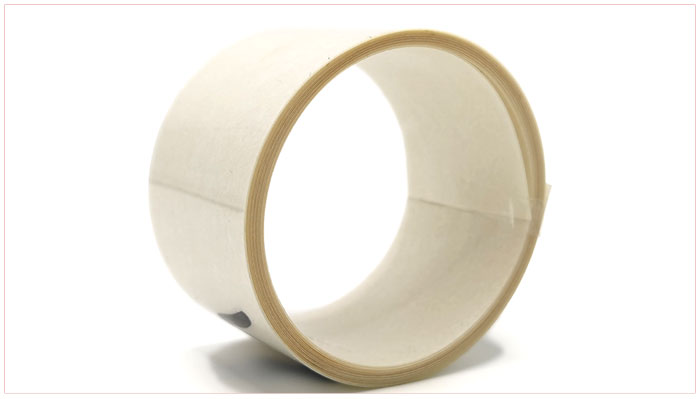

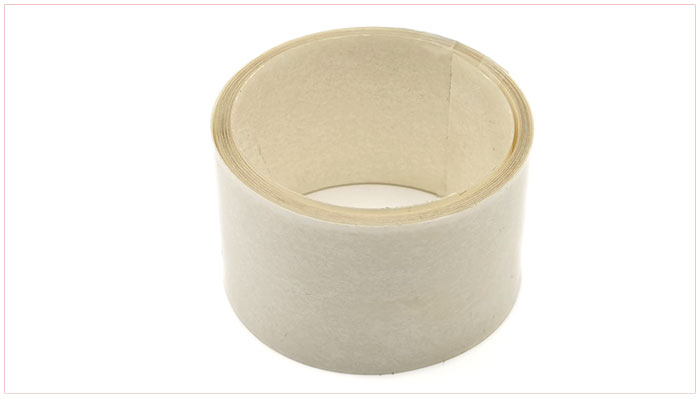

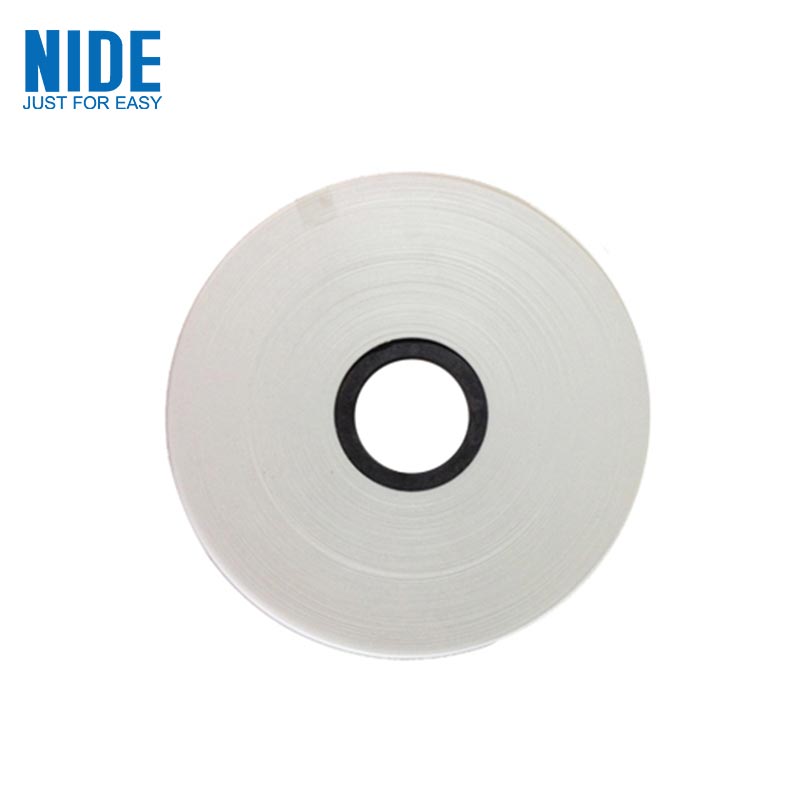

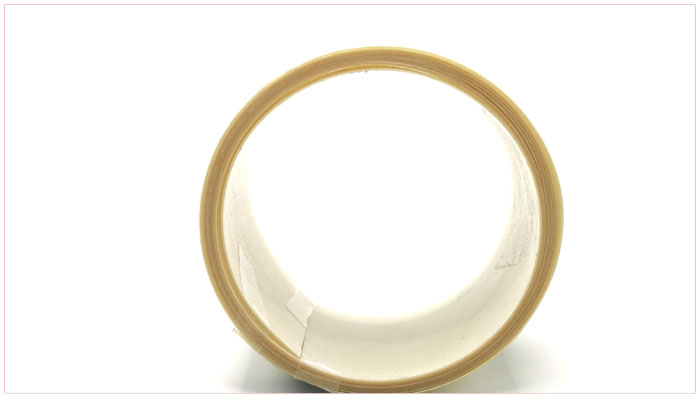

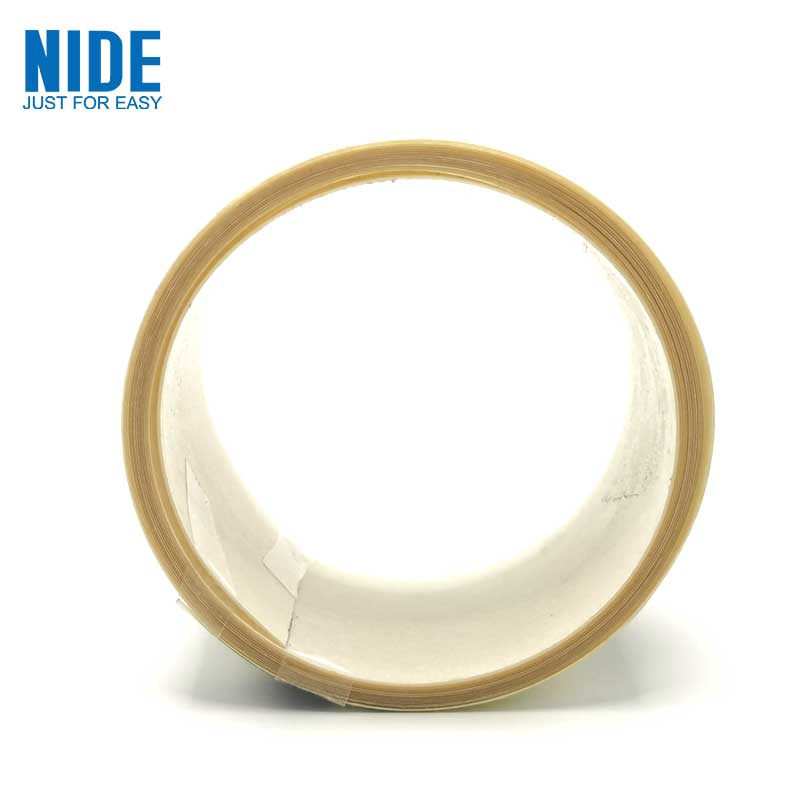

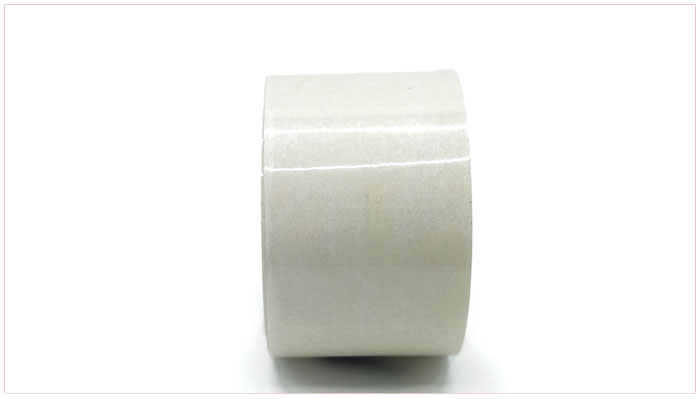

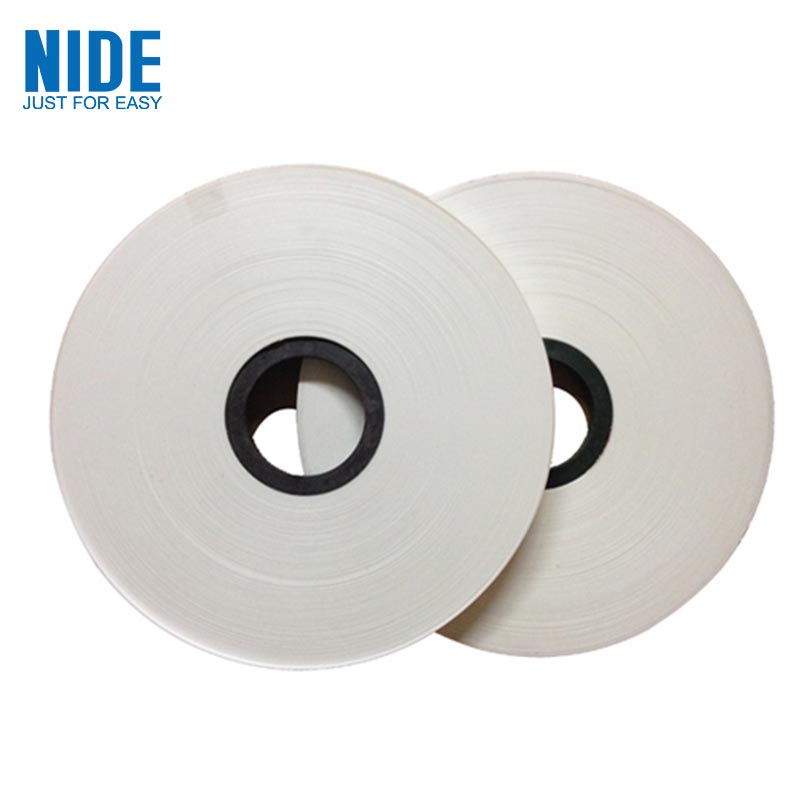

Electric Motor NM Insulation Mylar Polyester Film Material Paper
Stator phase insulating material calendered paper
NM Insulation Paper is a type of calendered paper. It shows excellent mechanical property, electrical property and resilience force. it is widely used in slot, phase and liner insulating of motor like transformer, alternater and other electrical material.
Stator insulating paper sepcification
Thickness 0.15mm-0.40mm
Width 5mm-914mm
Thermal class H
Working temperature 180 degree
Color White
|
Properties |
Unit |
Parameter |
|||||||||
|
Insulation paper thickness |
MM |
0.09 |
0.11 |
0.15 |
0.19 |
0.20 |
0.23 |
0.25 |
0.30 |
0.36 |
0.41 |
|
Thickness deviation |
MM |
±0.01 |
±0.01 |
±0.02 |
±0.02 |
±0.02 |
±0.02 |
±0.03 |
±0.03 |
±0.04 |
±0.04 |
|
Grammage and deviation |
GSM |
93±9 |
113±11 |
183±18 |
218±22 |
253±25 |
288±29 |
308±31 |
393±39 |
463±46 |
533±53 |
|
Film thickness |
MM |
0.036 |
0.050 |
0.100 |
0.125 |
0.150 |
0.175 |
0.190 |
0.250 |
0.300 |
0.350 |
|
Breakdown voltage |
KV |
≥5 |
≥6 |
≥9 |
≥10 |
≥11 |
≥13 |
≥14 |
≥16 |
≥18 |
≥22 |
|
Tensile strength (MD) |
N/CM |
≥60 |
≥80 |
≥150 |
≥190 |
≥220 |
≥250 |
≥280 |
≥330 |
≥350 |
≥380 |
|
Tensile strength (TD) |
N/CM |
≥40 |
≥70 |
≥110 |
≥140 |
≥150 |
≥160 |
≥180 |
≥280 |
≥300 |
≥330 |
|
Tensile strength after folding (MD) |
N/CM |
≥40 |
≥70 |
≥110 |
≥140 |
≥165 |
≥190 |
≥240 |
≥280 |
≥300 |
≥330 |
|
Tensile strength after folding (TD) |
N/CM |
≥20 |
≥50 |
≥90 |
≥110 |
≥115 |
≥120 |
≥130 |
≥180 |
≥200 |
≥230 |
Information needed for insulation material inquiry
It will be better if customer could send us detailed drawing including below information.
a. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, NHN , NMN ,PM ,Red Vulcanized Fiber,)
b. Insulation material dimension: width, thickness, tolerance.
c. Insulation material thermal class: Class F, Class E, Class B, Class H , Class C
d. Insulation material applications
e. Required quantity: normally its weight
f. Other technical requirement.
We also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc
Besides, we can supply the full range of motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper material, shaft, magnet, fan, motor cover,etc.
