Model:NDPJ-HXQ-C80A
Our commutators mainly come in hook type, groove type, flat type and other specifications. Widely used in power tools, household appliances, automobiles, motorcycle motors and other fields.
Categoryes: Commutator
Hook type commutator for household appliances

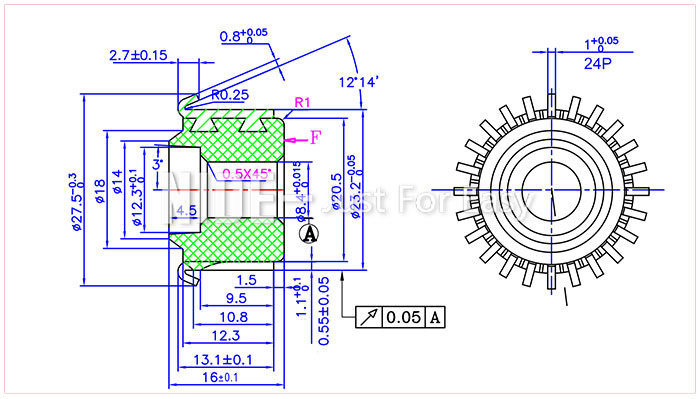

Commutator parameters
Product name: Household Appliances Motor Armature Commutator
OD: 23.2mm
ID : 8.4mm
Height : 16mm
Bar : 24P
Our commutators mainly come in hook type, groove type, flat type and other specifications. Widely used in power tools, household appliances, automobiles, motorcycle motors and other fields.
Armature Commutator Details
| Model No. | OD (mm) |
ID(mm) | Total height (mm) |
Segment Length (mm) |
Hook/Riser dia. (mm) |
Bar No. |
| S-02001 | 37.5 | φ13 | 24 | 20.5 | 38.5 | 32 |
| S-03002 | 15.75 | φ13 | 11.25 | 9.5 | 16 | 24 |
| S-03003 | 24 | φ9 | 17 | 14 | 25 | 24 |
| S-03003B | 24.5 | φ10 | 17.5 | 14 | 25.5 | 24 |
| S-03003C | 24.5 | φ10 | 17.5 | 14 | 25.5 | 24 |
| S-02004 | 24 | φ9 | 15 | 13 | 24.5 | 24 |
| S-03004A | 23.2 | φ9 | 15 | 13 | 24 | 24 |
| S-03005 | 24 | φ9 | 17 | 14 | 25 | 24 |
| S-03005A | 24 | φ9 | 17 | 14 | 25 | 24 |
| S-03006 | 37.5 | φ13 | 26 | 23 | 38.5 | 32 |
| S-03007 | 25.5 | φ10 | 17 | 14 | 26.5 | 24 |
| S-03007B | 25.5 | φ10 | 17 | 14 | 26.5 | 24 |
| S-03008 | 23.5 | φ9 | 14 | 12 | 24 | 24 |
| S-03009 | 24 | φ9 | 16.6 | 14 | 29 | 24 |
| DZQD-RZ32-010 | 28.5 | φ12 | 17.5 | 16 | 34.3 | 24 |
| S-03011 | 23.5 | φ9 | 17.5 | 14 | 28 | 24 |
| DZQD-RZ32-012 | 23.5 | φ10 | 18 | 16.4 | 28.5 | 24 |
| S-03013 | 23 | φ8 | 16 | 14 | 23.5 | 24 |
| S-03014 | 28.5 | φ11 | 20 | 17 | 29.5 | 24 |
| S-03015 | 22.5 | φ9 | 17.5 | 17.2 | 30 | 10 |
| S-03016 | 28 | φ14 | 20 | 19.2 | 36.8 | 12 |
| S-03016A | 28 | φ14.2 | 20 | 19.2 | 36.8 | 12 |
| S-03017 | 28.5 | φ9 | 17.5 | 15 | 29.5 | 24 |
| S-03018 | 34.3 | φ13 | 22 | 20.5 | 41.5 | 24 |
| S-03019 | 24.5 | φ10 | 17.5 | 14 | 25.5 | 24 |
| S-03019A | 24.5 | φ10 | 17.5 | 14 | 25.5 | 24 |
| S-03020 | 28.5 | φ11 | 17 | 14 | 29.5 | 24 |
| S-03021 | 20.5 | φ10 | 18 | 13.5 | 30.5 | 12 |
| QZQC-RZ12-022 | 20.5 | φ10 | 17.8 | 13.5 | 26 | 12 |
| S-03024 | 40.4 | φ13 | 24 | 20 | 42 | 50 |
| S-03025 | 23.2 | φ8 | 17.5 | 17 | 30 | 12 |
| QZQC-RZ32-026 | 20.2 | φ8 | 14.6 | 14.1 | 25 | 16 |
| QZQC-RZ32-026A | 20.2 | φ8 | 14.6 | 14.1 | 25.5 | 16 |
| QZQC-RZ12-027 | 18.9 | φ8 | 14.5 | 12.8 | 24 | 12 |
| S-03028 | 15.5 | φ7 | 11.4 | 11.7 | 20 | 9 |
| S-03030 | 22.5 | φ9.2 | 18 | 17.7 | 30.6 | 10 |
| S-03031 | 22.5 | φ12 | 21 | 20.5 | 30.5 | 10 |
| S-03032 | 28.5 | φ12 | 17.5 | 14.5 | 29.5 | 24 |
| S-03033 | 30 | φ10 | 20 | 17 | 35.5 | 24 |
| S-03033A | 30 | φ11 | 21 | 18 | 36 | 24 |
| S-03033B | 30 | φ11 | 21 | 18.5 | 36 | 24 |
| S-03033C | 30 | φ11 | 21 | 18.5 | 36 | 24 |
| JZQC-RZ32-037 | 22 | φ8 | 16 | 14.2 | 27 | 16 |
| S-03038 | 35.4 | φ14 | 42.5 | 38 | 48 | 23 |
| S-03038A | 35.4 | φ14 | 42.5 | 38 | 48 | 23 |
| S-03044 | 22.5 | φ10 | 17.5 | 17 | 28.5 | 10 |
| S-03045 | 35.5 | φ15.75 | 23.5 | 20 | 46 | 19 |
| S-03046A | 37.5 | φ14 | 42 | 38 | 49.5 | 23 |
| S-03046B | 37.5 | φ14 | 42 | 38 | 49.5 | 23 |
| S-03047 | 45 | φ15.5 | 50 | 44.4 | 62 | 21 |
| S-03048 | 34 | φ10.2 | 38.5 | 34.5 | 46.5 | 23 |
| S-03050 | 15 | φ5 | 16.5 | 15.5 | 20 | 12 |

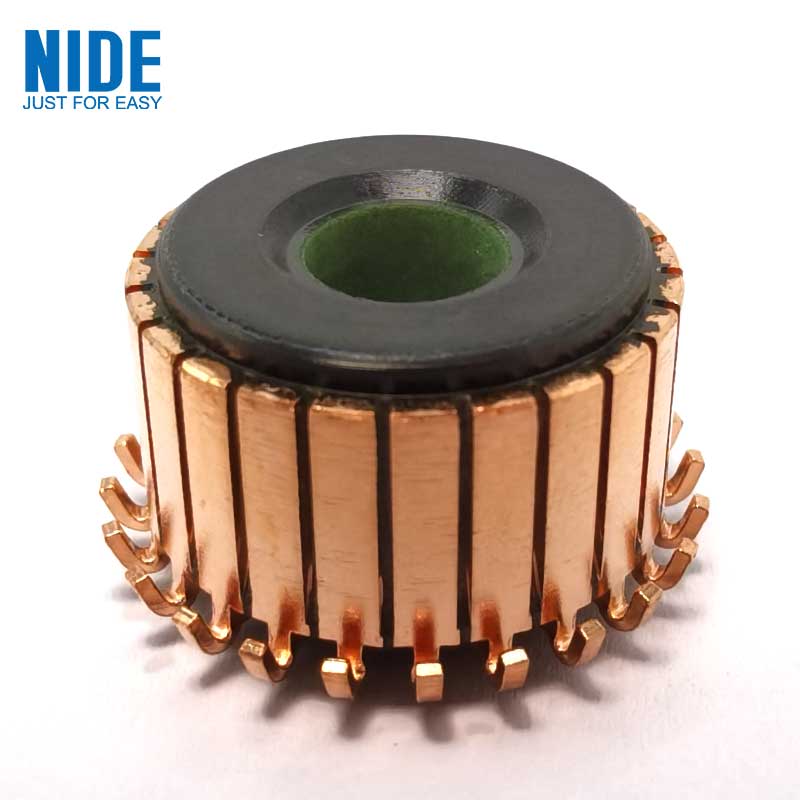

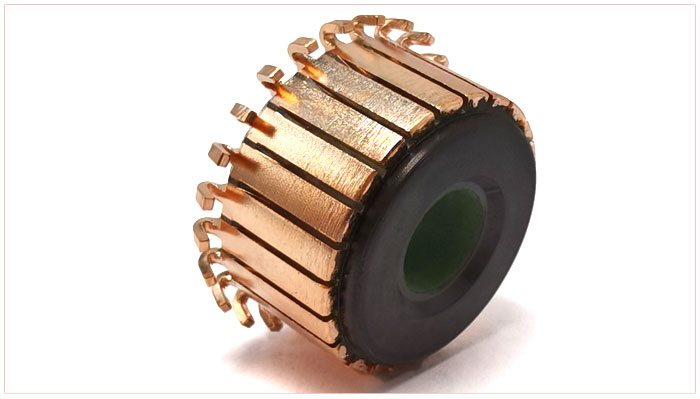

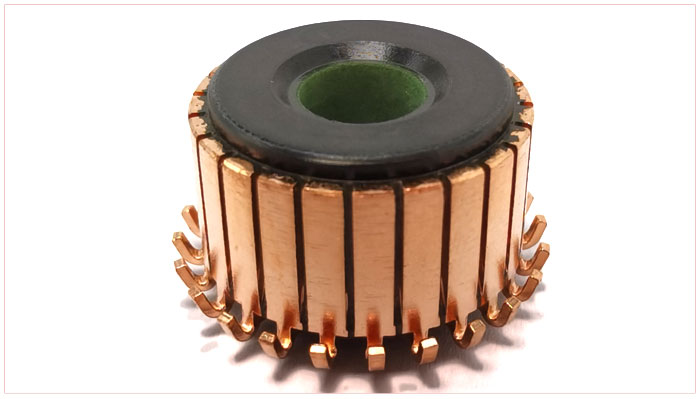

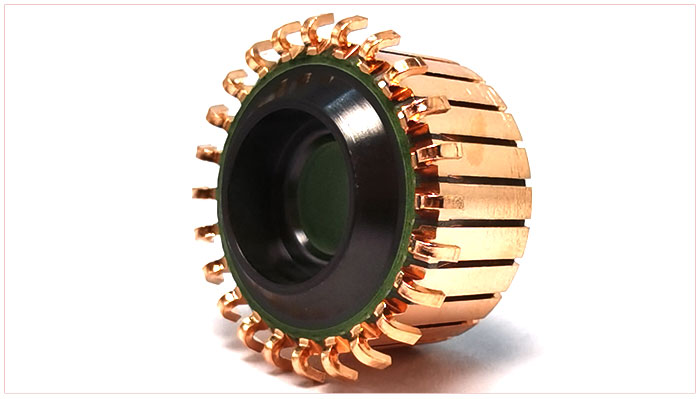

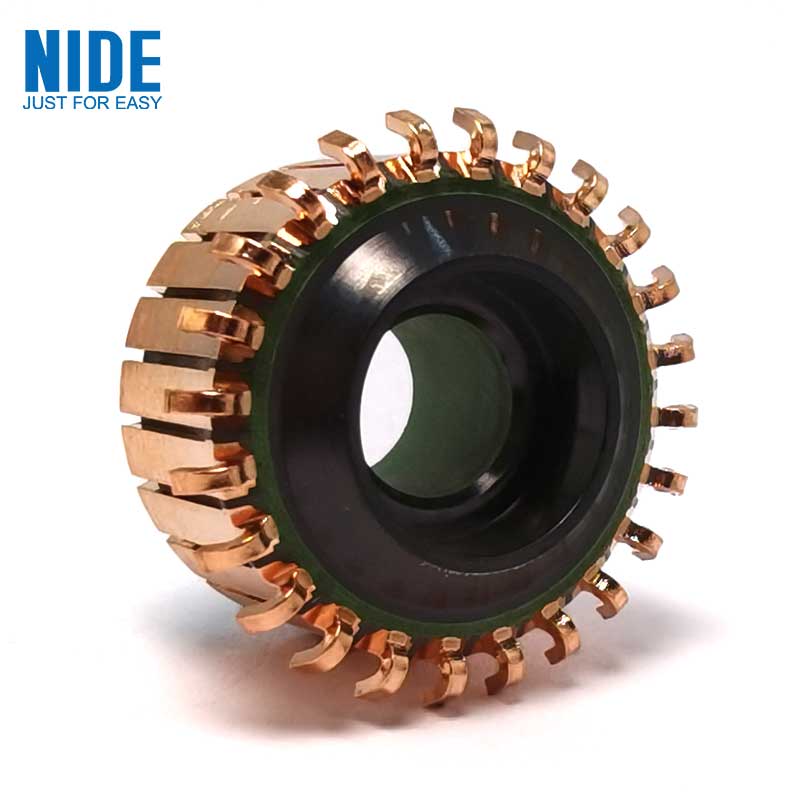

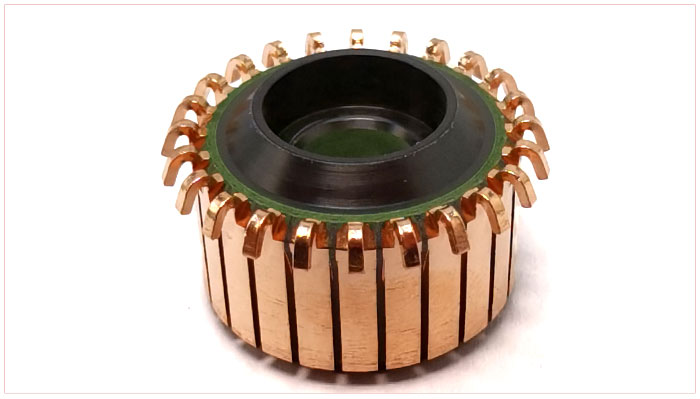

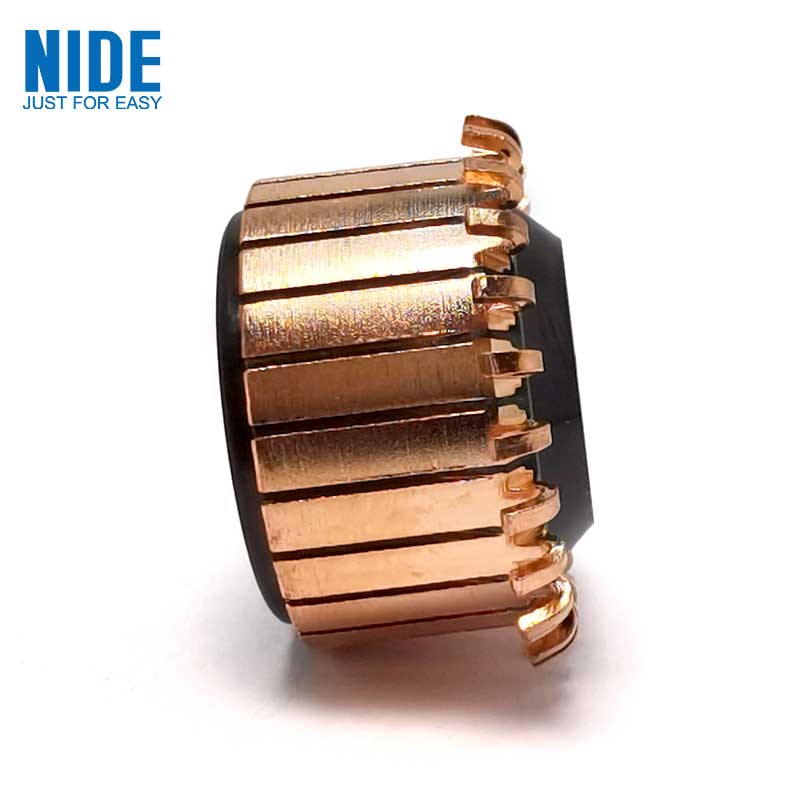

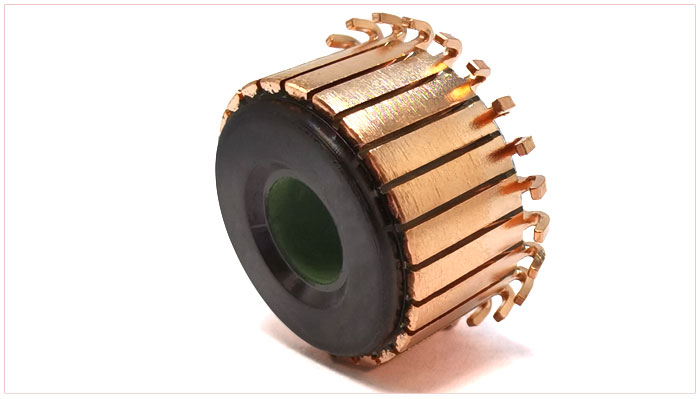

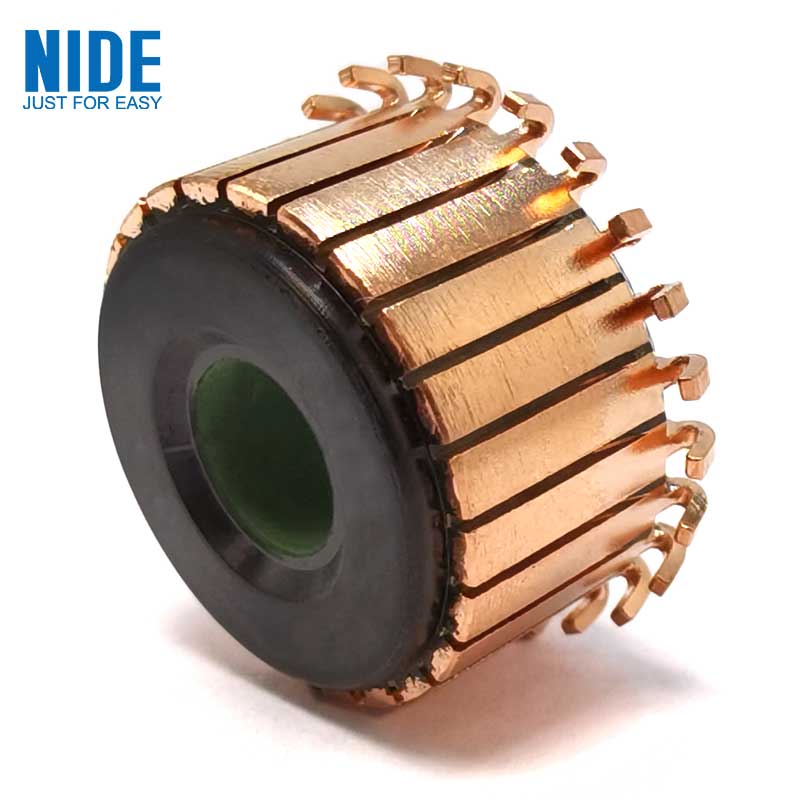

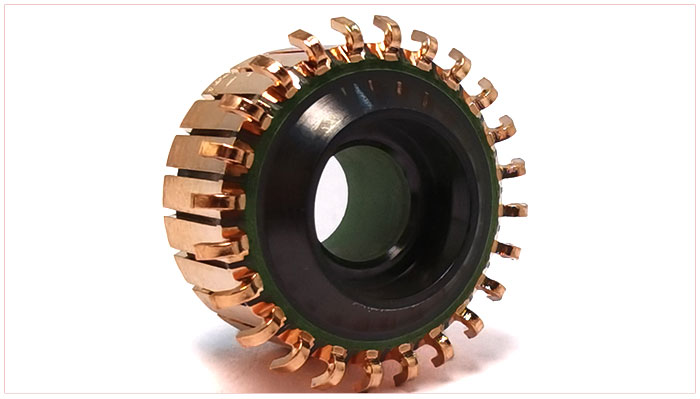

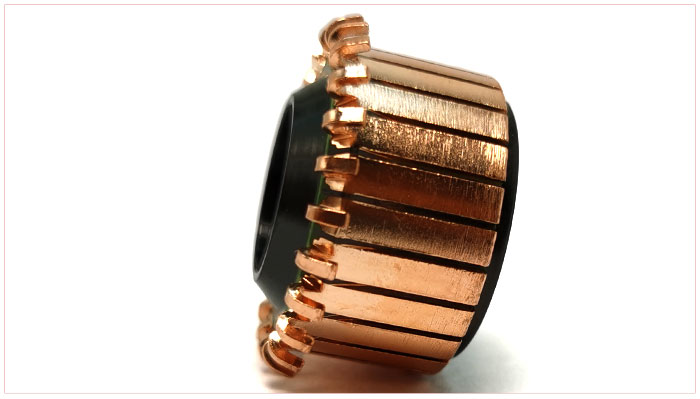

Armature Commutator Picture
Information needed for commutator inquiry:
It will be better if customer could send us detailed drawing including below information.
1. Commutator dimension: OD, ID, total height, and copper height, bar number.
2. Commutator type: hook type, raiser type or planner
3. Copper material: Agcu/ Cu
4. Commutator applications
5. Required quantity
6. Copper bush needed or not
7. Other technical requirement.
Nide produces more than 1200 different types of motor commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.
Besides, we can supply the full range of motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper material, shaft, magnet, fan, motor cover,etc.
