12P Automobile Motor Commutator Armature Hook Commutator 9*20*15.8

Application of automobile commutator

In electric vehicles and hybrid vehicles, the commutator plays a vital role. It is an important component of the motor to control the current. It controls the smooth reversal of the current when the motor is running, making the vehicle drive more smoothly. At the same time, the commutator can also adjust the power output and energy recovery of the motor to meet the needs of use under different conditions.

The function of the automobile commutator is to transfer the direction of rotation from one axis to another, thereby enabling the mechanical equipment to achieve forward and reverse rotation or steering operations.

In cars, the commutator is usually located in the transmission. It transmits the rotational torque output by the engine to the wheels through gears, allowing the car to move forward or reverse. In addition, commutators are also used in mechanical devices in industrial production, such as drilling machines, milling machines, grinders, etc., to achieve steering operations.

Collector Commutator Parameters

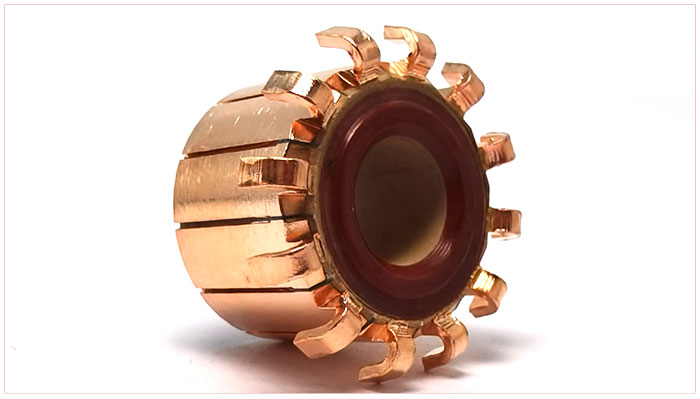

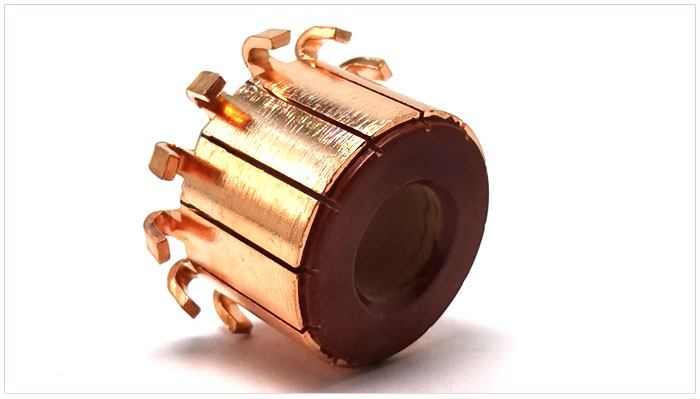

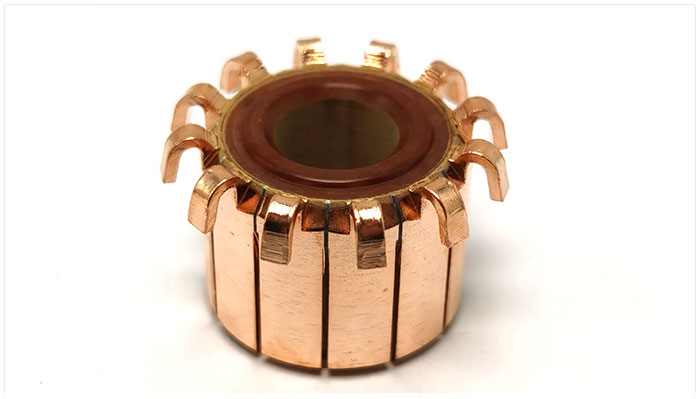

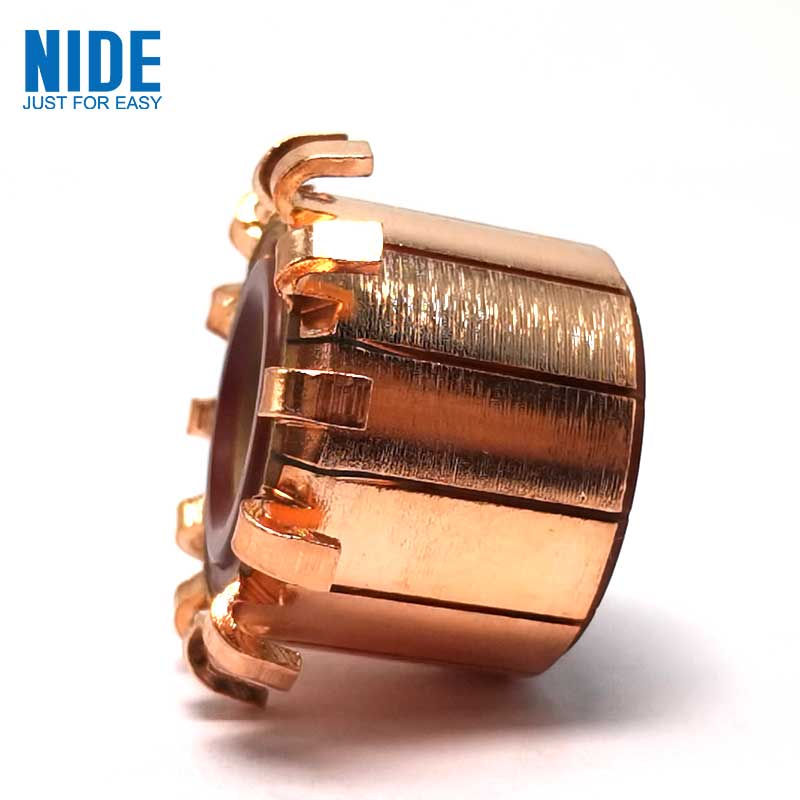

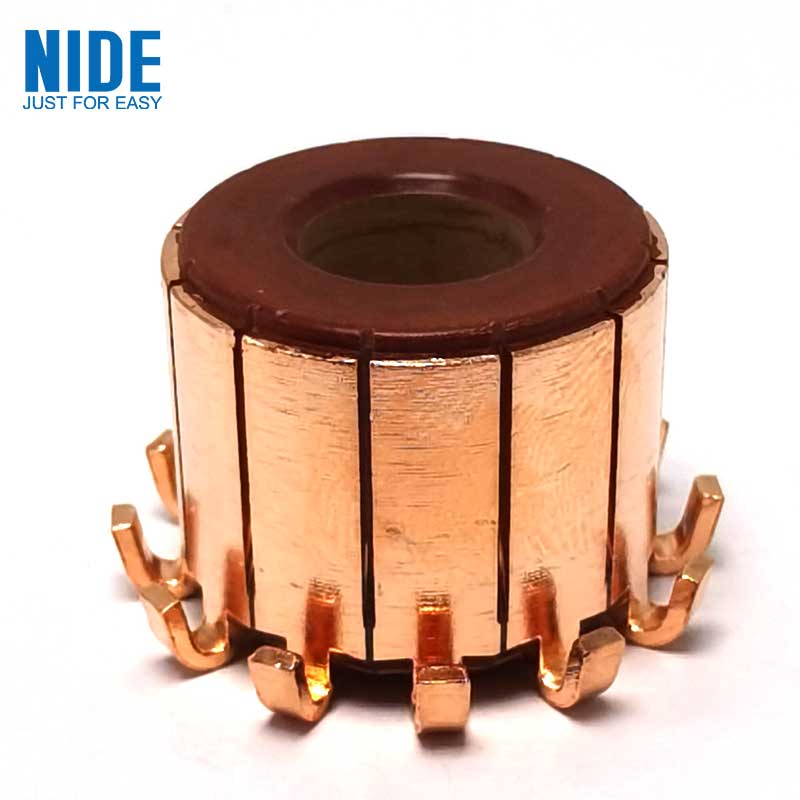

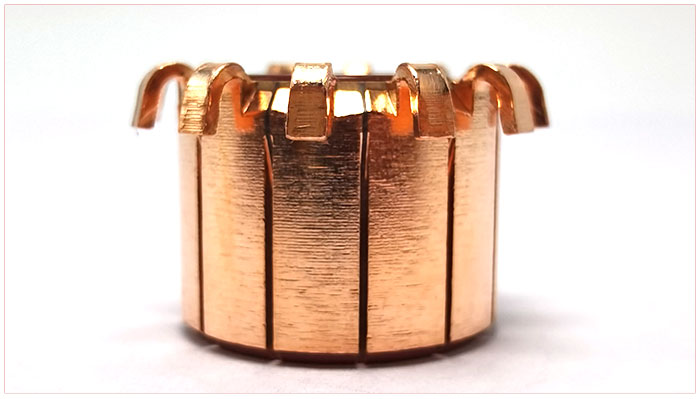

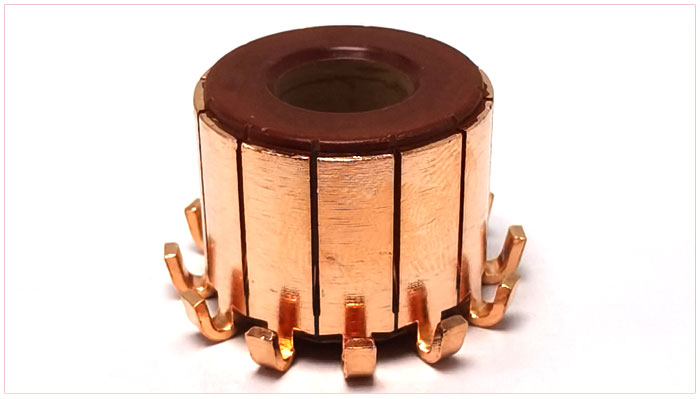

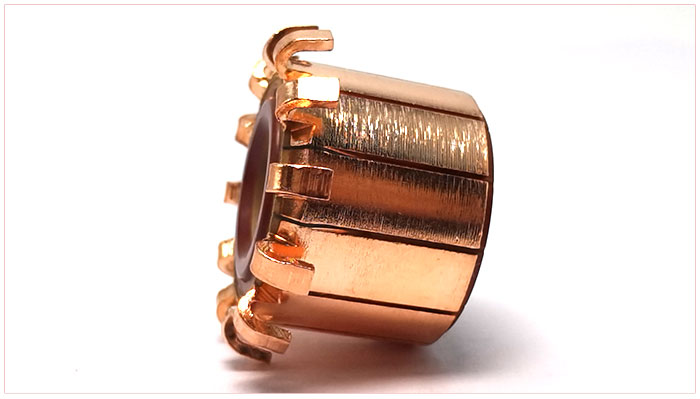

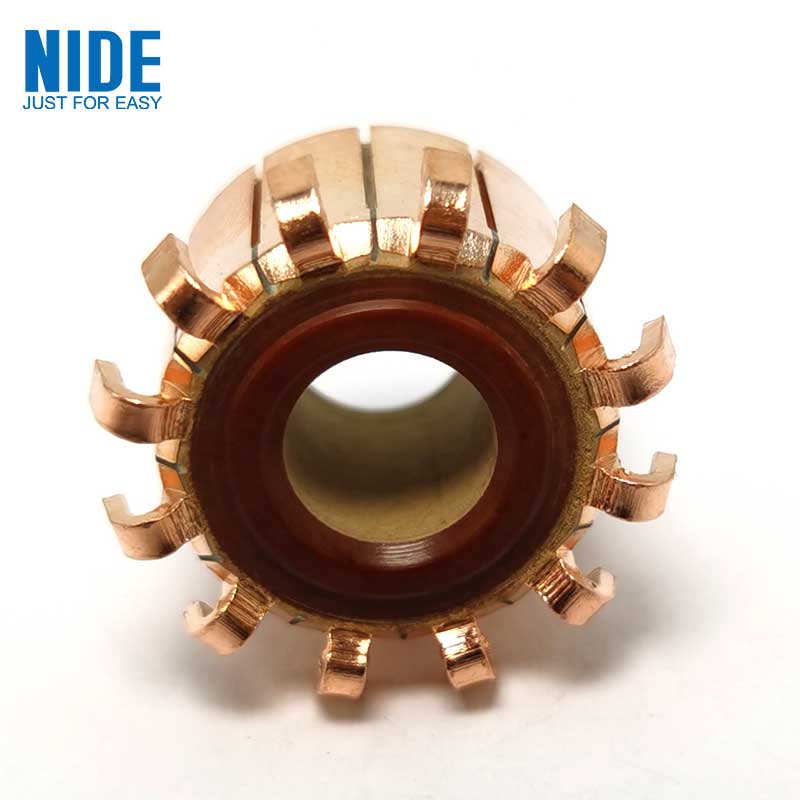

Collector Commutator Picture

Custom Starter Motor Commutator Electric Universal And Dc Motor Armature Collector. Contact us for Finding Complete Details about Universal Motor Commutator.

Information needed for commutator inquiry:
It will be better if customer could send us detailed drawing including below information.
1. Commutator dimension: OD, ID, total height, and copper height, bar number.
2. Commutator type: hook type, raiser type or planner
3. Copper material: Agcu/ Cu
4. Commutator applications
5. Required quantity
6. Copper bush needed or not

7. Other technical requirement.

Nide produces more than 1200 different types of motor commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.

Besides, we can supply the full range of motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper material, shaft, magnet, fan, motor cover,etc.
