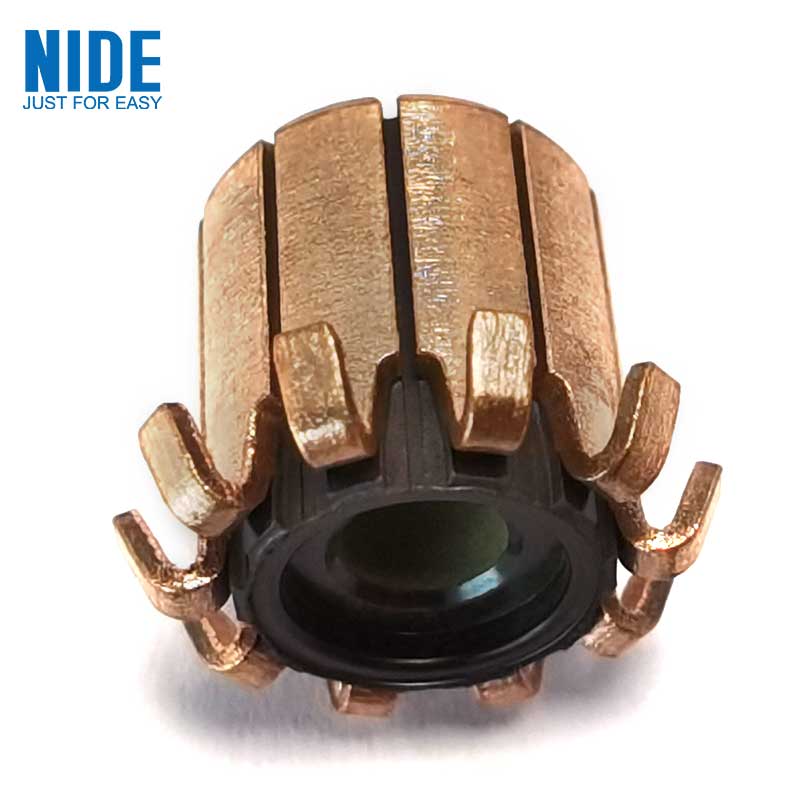

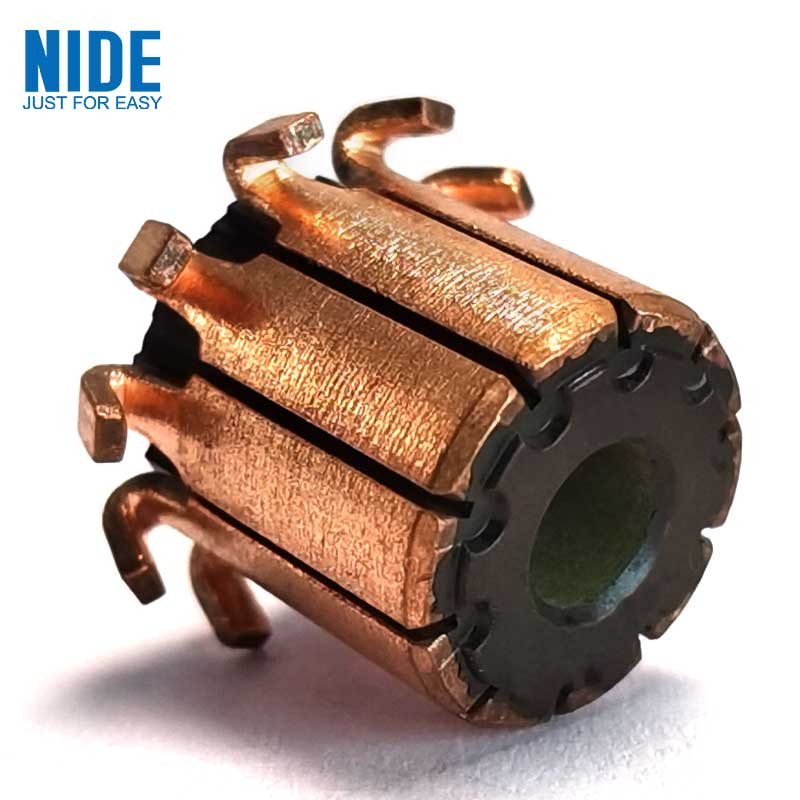

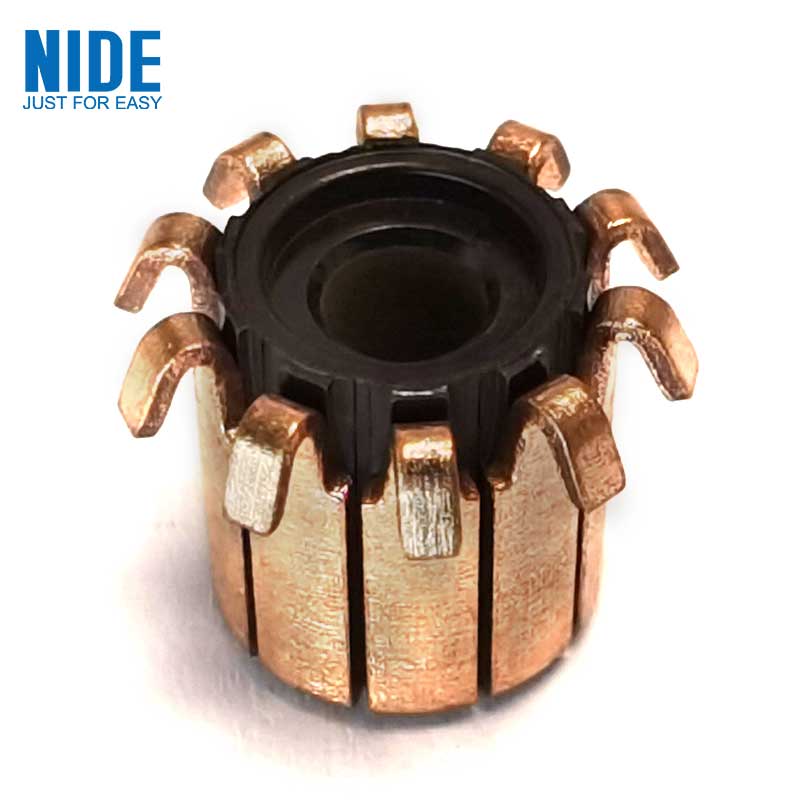

10P Automotive seat motor hook commutator

Model:NDPJ-HXQ-QCS616

The micro commutator is suitable for automotive seat motor.



Categoryes: Commutator

CONTACT US
Details

10P Automotive seat motor hook commutator



The car seat motor commutator is designed a tailor-made 10 hooks with a diameter of 4 mm, 10.5 mm OD with a 11.2 mm bore.Commutator adopts shell-type technology and air mica undercut. The commmutator collector uses 0.08% silver copper materials with hardness above 95 HB and bars with a minimum tensile strength of 50N. It is guaranteed in terms of sturdiness, reliability and durability.


The micro commutator is suitable for automotive micro motors, car window motors, glass window motors, wiper motors, push rod motors.

commutator in dc motor.jpg

Automotive seat motor commutator details

Product name Automotive seat motor hook commutator
Materials 0.03% or 0.08% sliver copper or customized
Dimension Customized
Commutator type Hook type/Raiser type
Application  DC motor,automotive micro motors, car window motors, glass window motors,
Package  Suitable for land and sea transportation
Production Capacity 1000000pcs/month

NIDE can design and manufacture a variety of commutators according to customer needs, from small to large commutators for heavy industries.

Contact us for motor commutator information on our service!

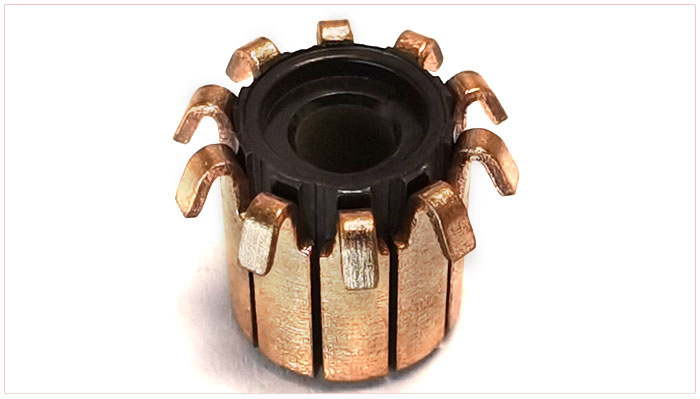

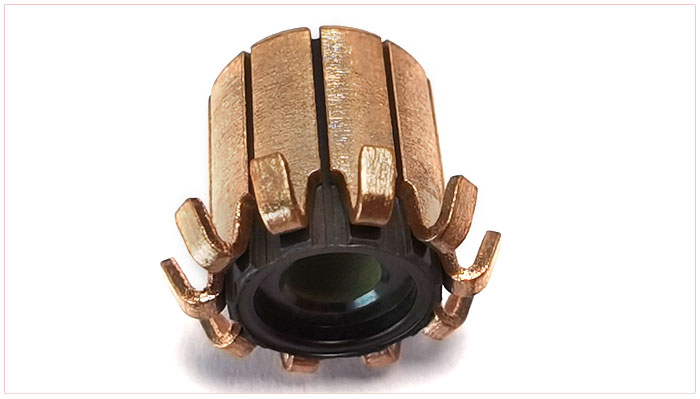

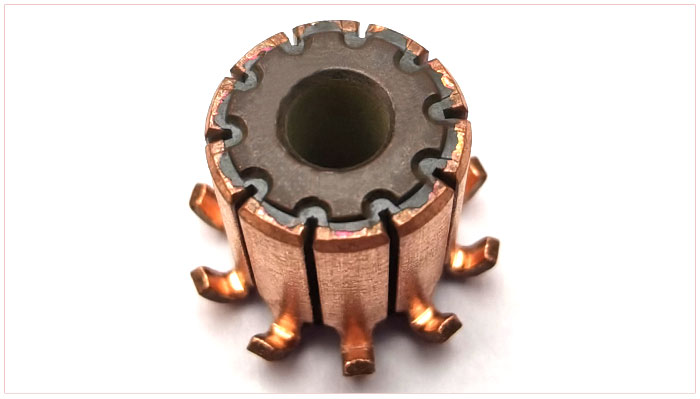

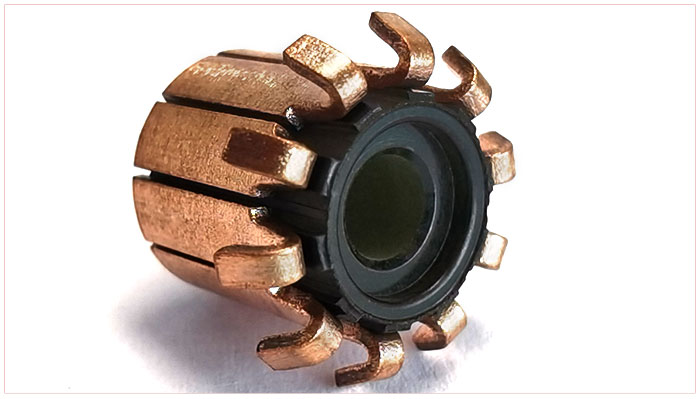

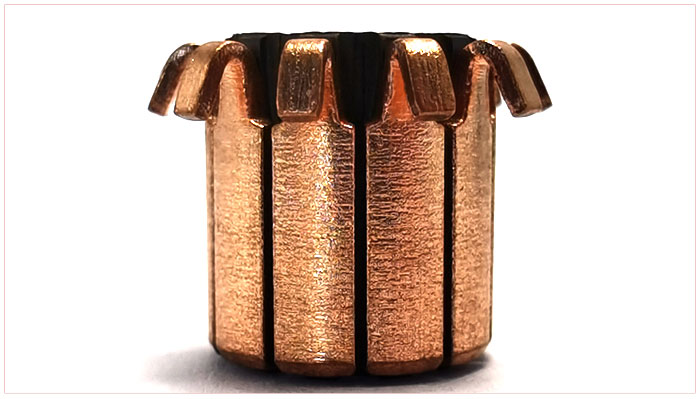

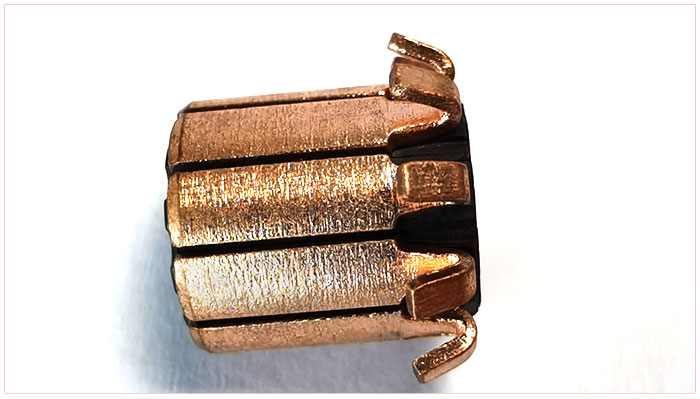

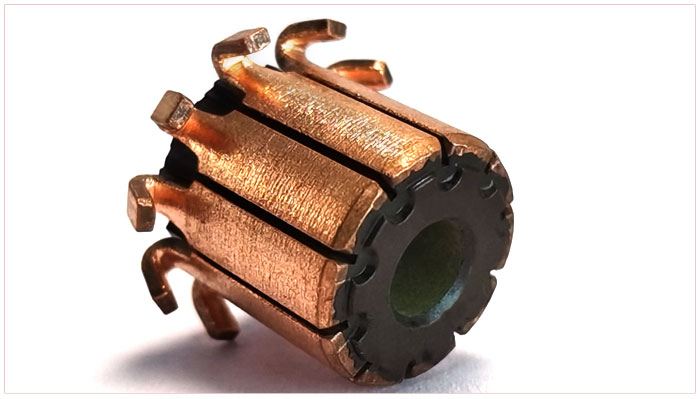

Automotive seat motor commutator picture



ac commutator motor.jpg

motor armature commutator.jpg

motor commutator.jpg

electric motor commutator.jpg

Automotive seat motor commutator

Automotive seat motor commutator supplier

car cseat motor commutator supplier



Information needed for commutator inquiry:
It will be better if customer could send us detailed drawing including below information.
1. Commutator dimension: OD, ID, total height, and copper height, bar number.
2. Commutator type: hook type, raiser type or planner
3. Copper material: Agcu/ Cu
4. Commutator applications
5. Required quantity
6. Copper bush needed or not

7. Other technical requirement.



Nide produces more than 1200 different types of motor commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.





Besides, we can supply the full range of motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper material, shaft, magnet, fan, motor cover,etc.
