Automotive motor commutator hook type commutator for window motor 4*8.8*10.3mm

NDPJ-HXQ-QP735A

The commutator is suitable for automobile displacement motors, such seat adjustment motor , electric window lift motor , windshield wiper motor,etc.



Categoryes: Commutator

CONTACT US
Details

Custom Automotive motor commutator hook type commutator for window motor 4*8.8*10.3mm



The commutator is suitable for auto displacement motors, such seat adjustment motor , electric window lift motor , windshield wiper motor,etc.

electric window lift motor commutator

Auto Car window motor commutator details

Product name Custom car window lift motor commutator
Materials 0.03% or 0.08% sliver copper or customized
ID 4mm
OD 8.8mm
Height 10.3mm
Bar 8
Dimension Customized
Commutator type Hook type/Raiser type
Application  DC motor,automotive micro motors, car window motors, glass window motors,
Package  Suitable for land and sea transportation
Production Capacity 1000000pcs/month

NIDE can design and manufacture a variety of commutators according to customer needs, from small to large commutators for heavy industries.

Contact us for motor commutator information on our service!

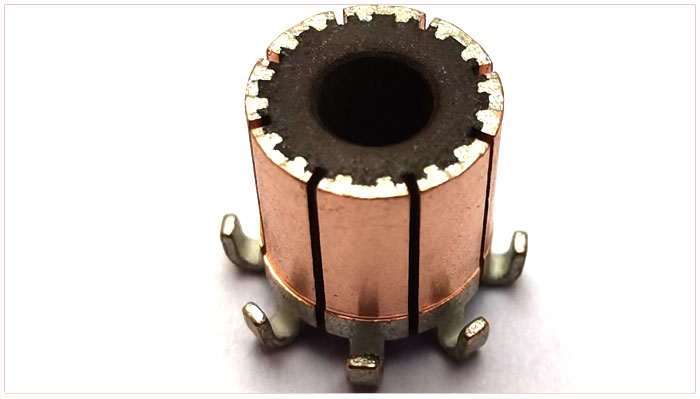

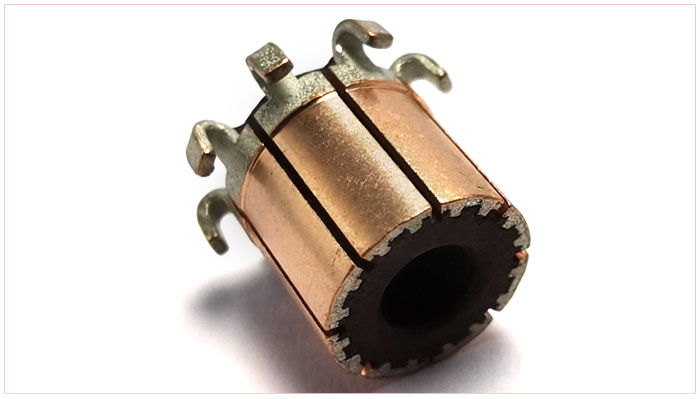

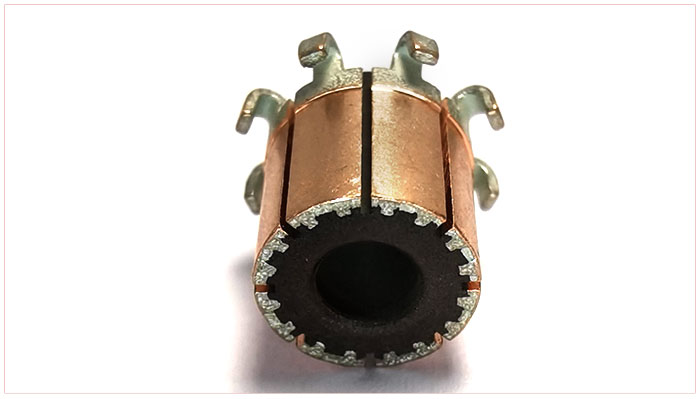

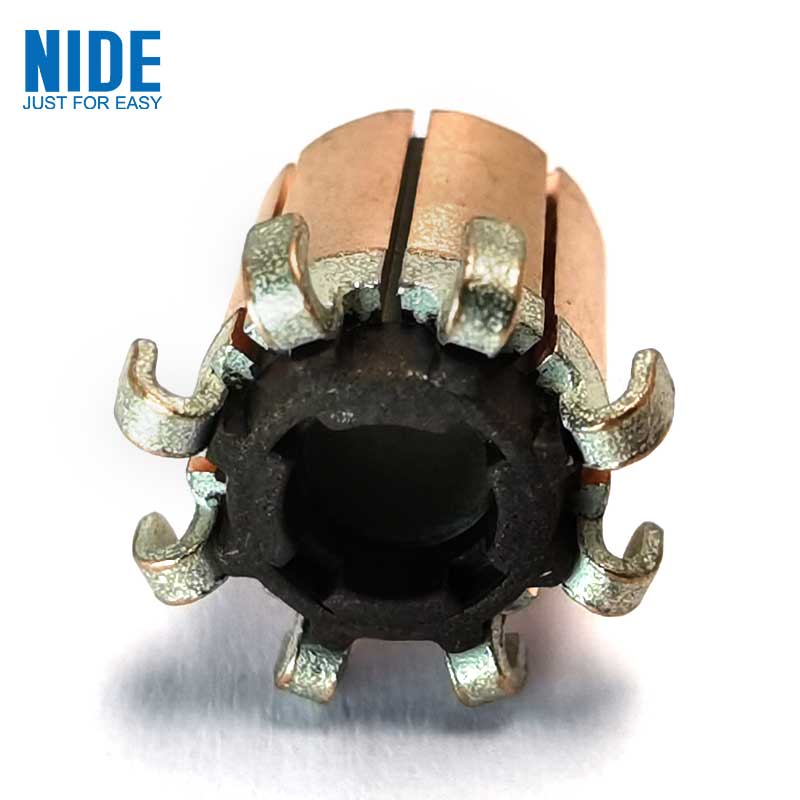

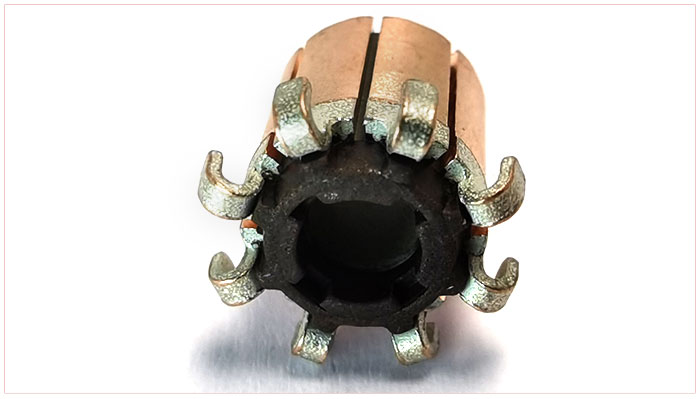

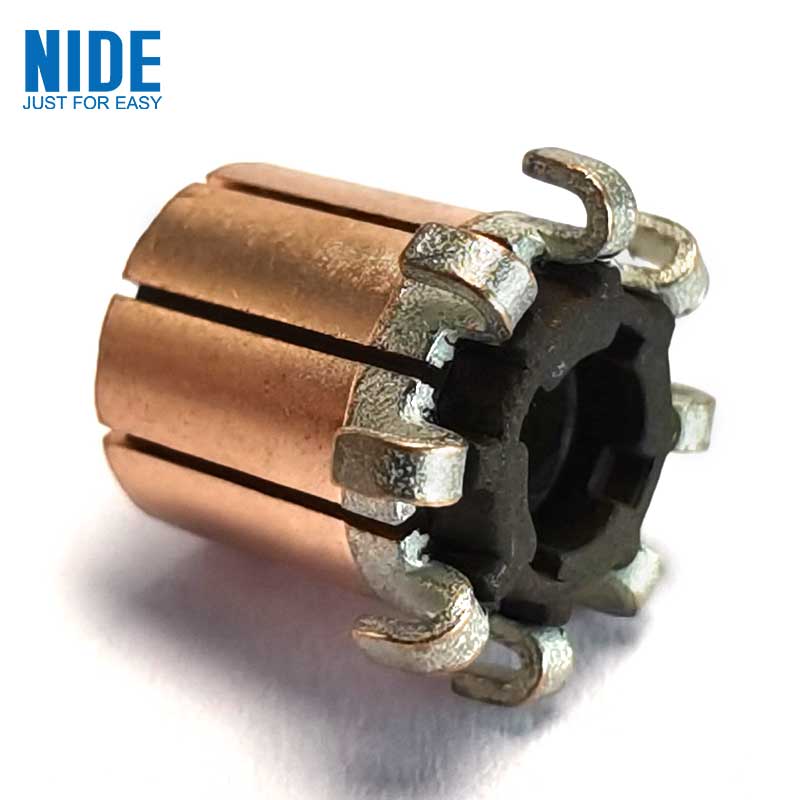

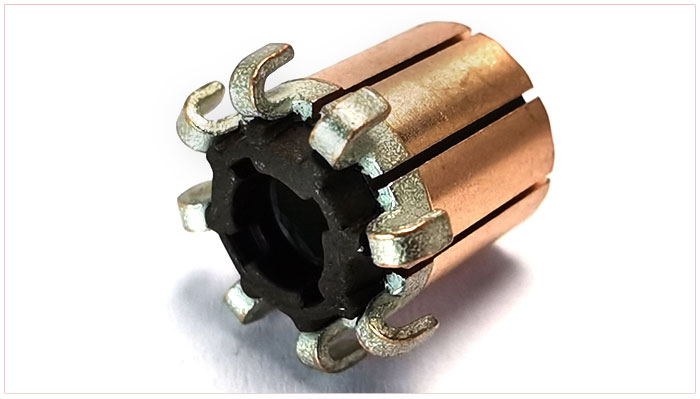

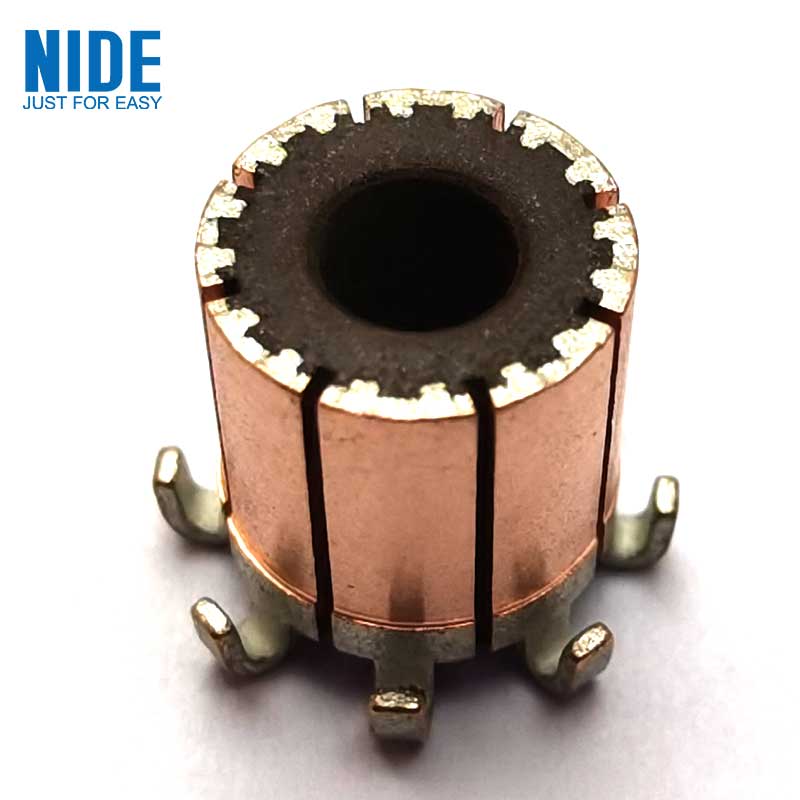

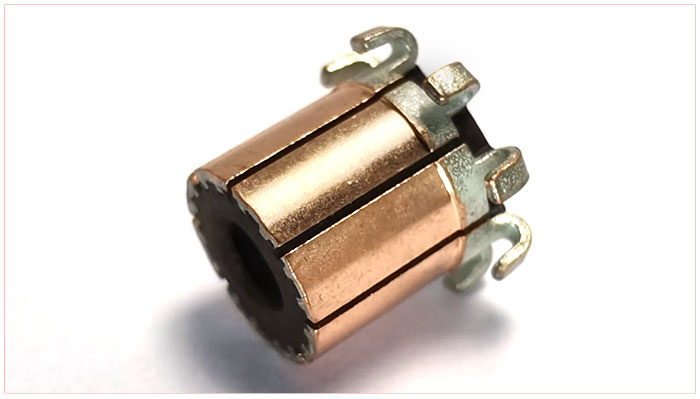

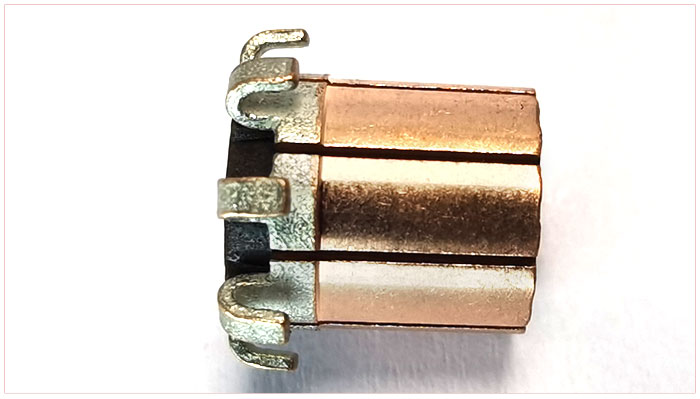

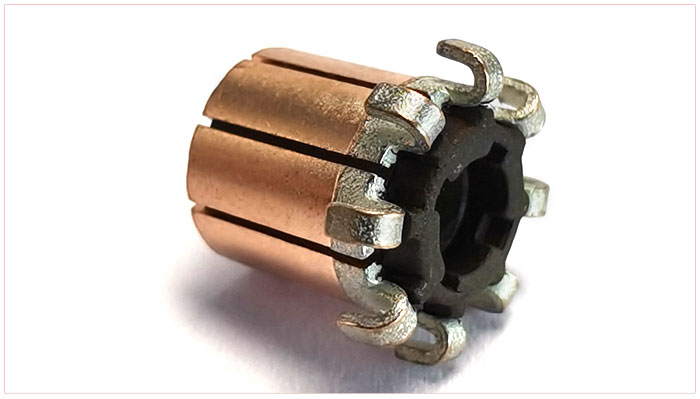

Auto car window motor commutator picture



electric window lift motor commutator supplier

electric window lift commutator supplier

car electric window lift motor commutator

auto electric window lift motor commutator

Automotive electric window lift motor commutator

Automotive electric window lift motor commutator supplier

car electric window lift motor commutator supplier



Information needed for commutator inquiry:
It will be better if customer could send us detailed drawing including below information.
1. Commutator dimension: OD, ID, total height, and copper height, bar number.
2. Commutator type: hook type, raiser type or planner
3. Copper material: Agcu/ Cu
4. Commutator applications
5. Required quantity
6. Copper bush needed or not

7. Other technical requirement.



Nide produces more than 1200 different types of motor commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.





Besides, we can supply the full range of motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper material, shaft, magnet, fan, motor cover,etc.
