12P Universal Motor Commutator Collector

 Model: NDPJ-HXQ-1014

​Custom Electric Universal And Dc Motor Armature Collector. Contact us for Finding Complete Details about Universal Motor Commutator.



Categoryes: Commutator

CONTACT US
Details

12P Universal Motor Commutator Armature Collector 10*23.2*18



A collector commutator is a moving part of a rotary electrical switch in electric motors and electrical generators that periodically reverses the current direction between the rotor and the external circuit. It consists of a cylinder composed of multiple metal contact segments on the rotating armature of the machine. The commutator is one component of a motor; there are also two or more stationary electrical contacts called "brushes" made of a soft conductor like carbon that press against the commutator, making sliding contact with successive segments of the commutator as it rotates.



Collector Commutator Application

Collector Commutators are used in DC motors, generators and  universal motors. In a motor the commutator applies electric current to the windings. By reversing the current direction in the rotating windings each half turn, a steady rotating force (torque) is produced. In a generator the commutator picks off the current generated in the windings, reversing the direction of the current with each half turn, serving as a mechanical rectifier to convert the alternating current from the windings to unidirectional direct current in the external load circuit.



Collector Commutator Parameters

Product Name:  Universal Motor Commutator Armature Collector
Material:  Copper
Type:  Hook Commutator
Hole diameter:  10mm
Outer diameter: 23.2mm
Height: 18mm
Slices 12P
MOQ 10000P



Collector Commutator Picture

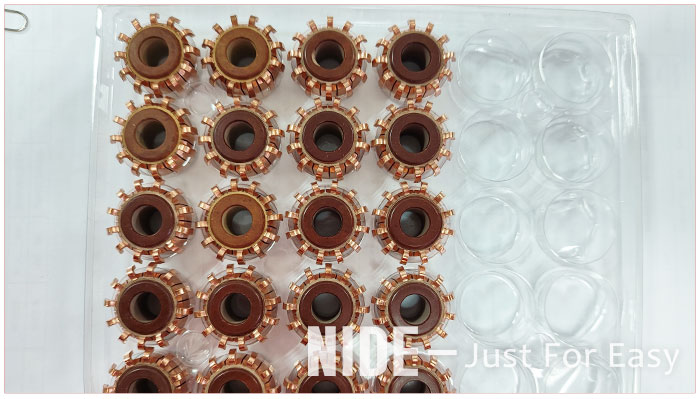

Universal Motor Commutator.jpg

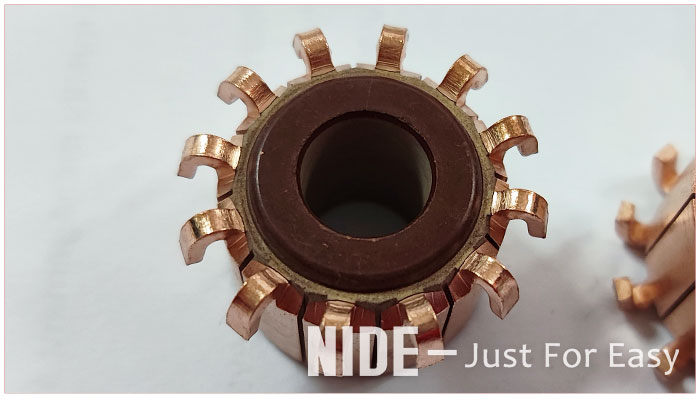

armature commutator.jpg

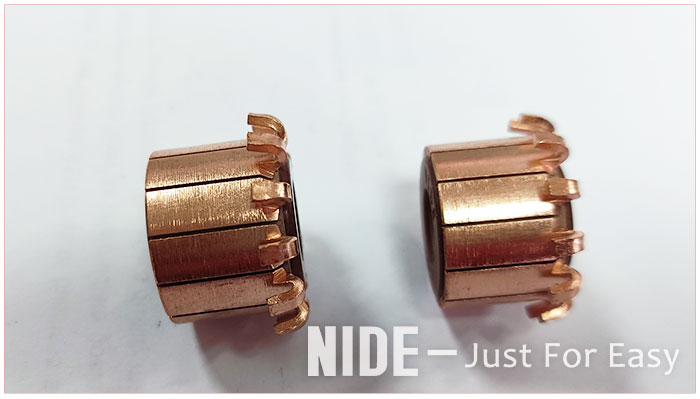

hook commutator.jpg

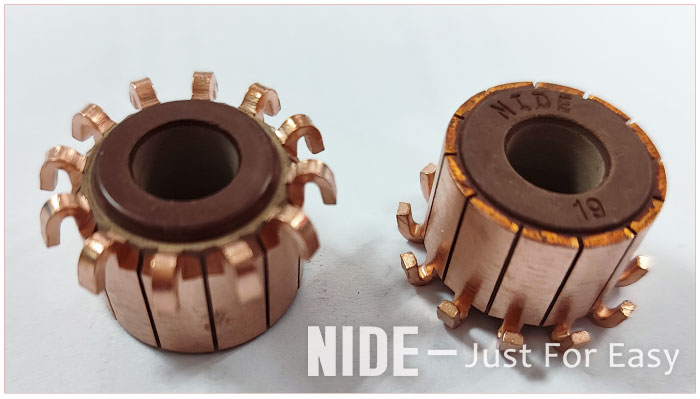

armature collector.jpg

motor collector.jpg

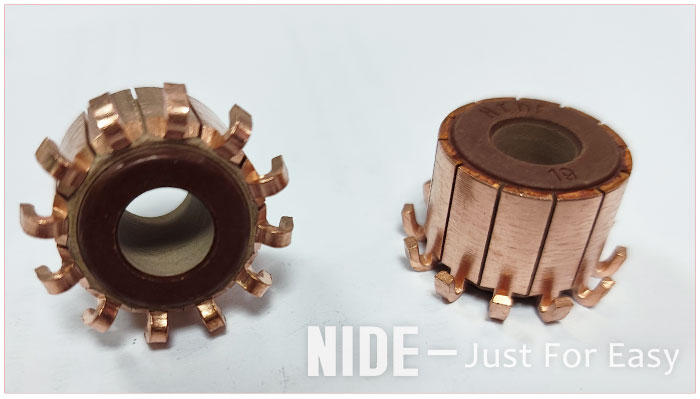

armature commutator collector.jpg

Custom Starter Motor Commutator Electric Universal And Dc Motor Armature Collector. Contact us for Finding Complete Details about Universal Motor Commutator.





Information needed for commutator inquiry:

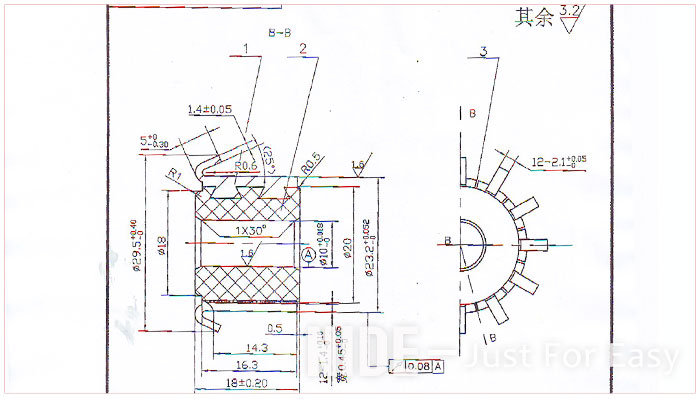

It will be better if customer could send us detailed drawing including below information.
1. Commutator dimension: OD, ID, total height, and copper height, bar number.
2. Commutator type: hook type, raiser type or planner
3. Copper material: Agcu/ Cu
4. Commutator applications
5. Required quantity
6. Copper bush needed or not

7. Other technical requirement.



Nide produces more than 1200 different types of motor commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.





Besides, we can supply the full range of motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper material, shaft, magnet, fan, motor cover,etc.

motor part, motor components, motor accessories
