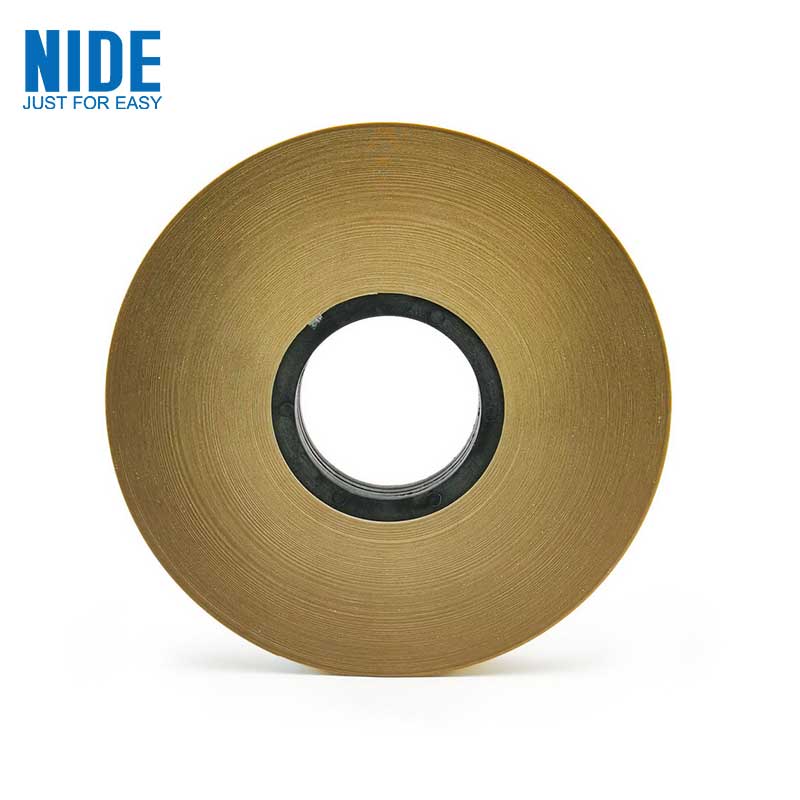

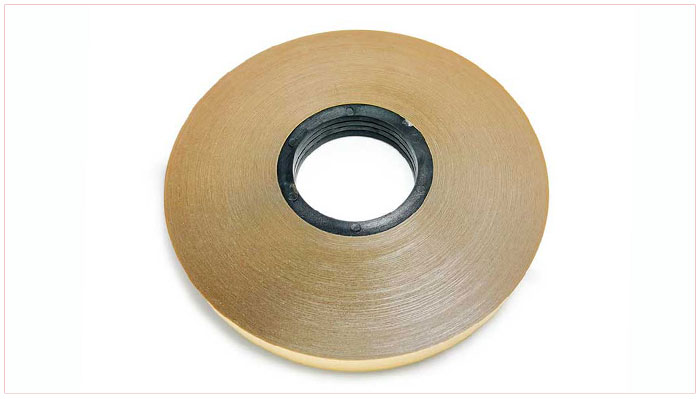

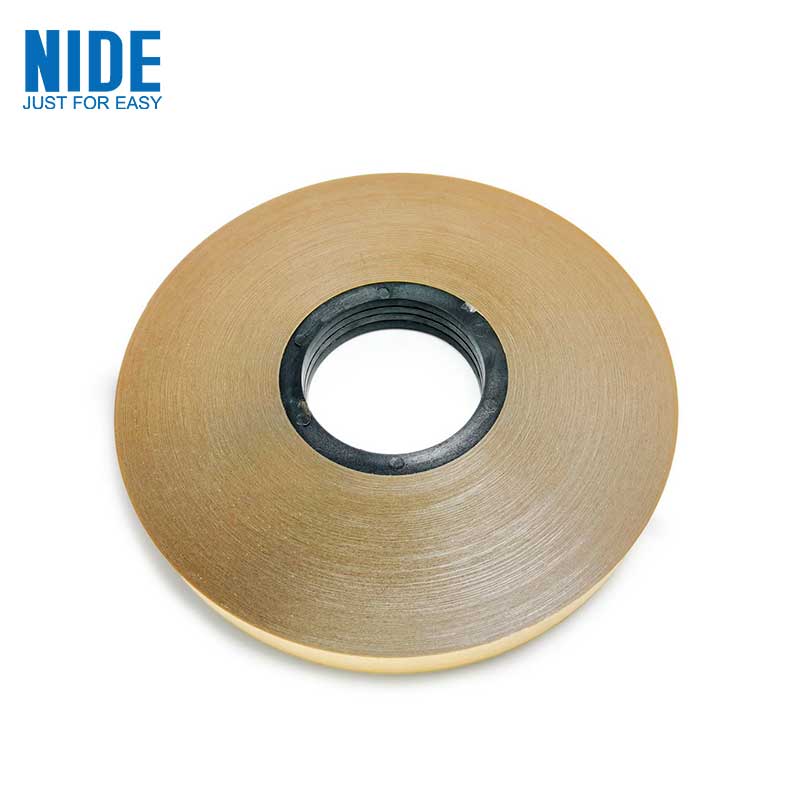

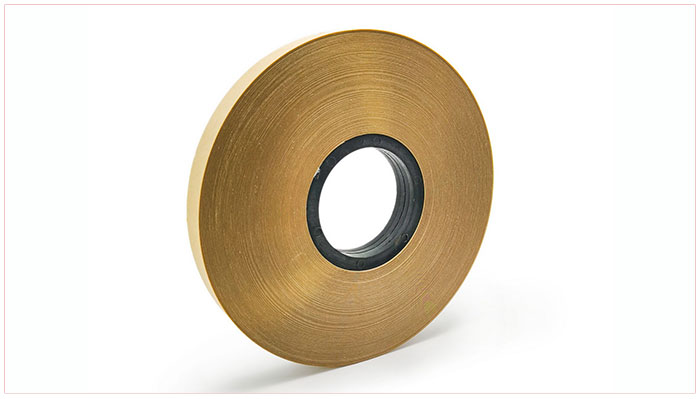

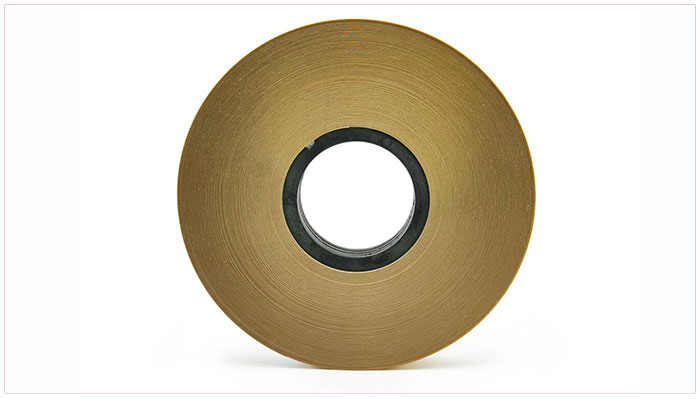

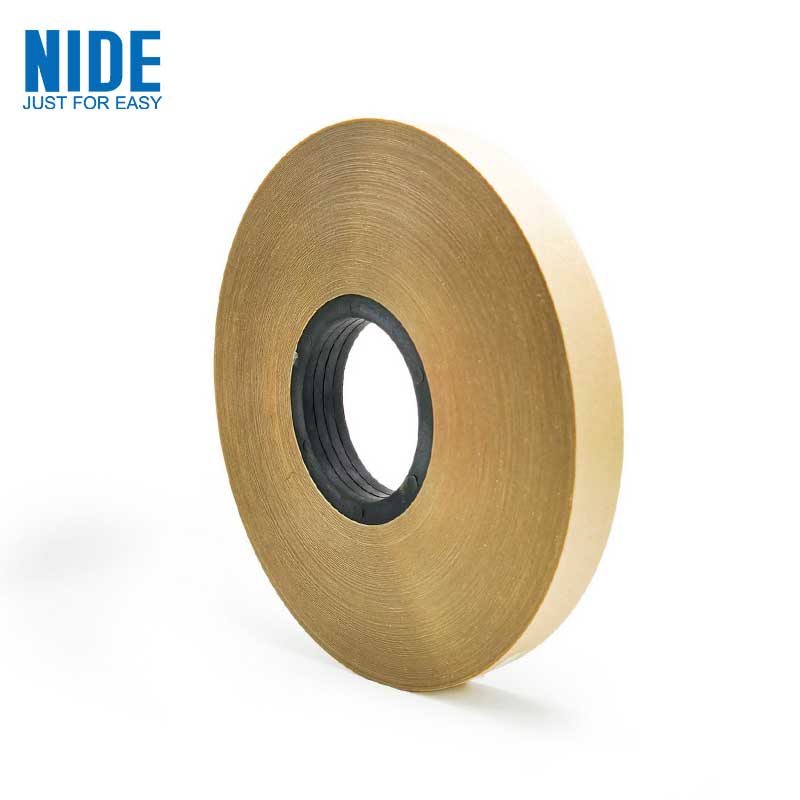

Customized PMP Electrical Insulation Paper For Motor Coil Winding
NDPJ-JYZ-PMP
PMP Electrical Insulation Paper is suitable for office supplies, collar linings, electronics, insulation, flexible circuit printing, monitor screensavers, membrane switches, film windows, printed films.



CONTACT US
Details



Customized PMP Electrical Insulation Paper For Motor Coil Winding



Product Description:
Polyester film capacitor paper soft composite foil is an insulating material product made of a layer of polyester film coated with adhesive in the middle of the upper and lower layers of capacitor paper, referred to as PMP.Temperature resistance grade F (155℃), no delamination, no foaming, no glue flow.Polyester film capacitor paper soft composite foil has good dielectric properties and high mechanical strength. It is suitable for all kinds of high voltage transformers as gasket insulation.

Application of PMP insulating paper:
Blister, folding box, packaging, printing, card making, high and mid-range tapes, labels, office supplies, collar linings, electronics, insulation, flexible circuit printing, monitor screensavers, membrane switches, film windows, printed films, Imposition film base, self-adhesive backing paper, glue coating, silicon coating, motor gasket, cable tape, instrument panel, capacitor insulation, furniture stripping film, window film, protective film inkjet printing, decoration, printing film base, advertising film Base, digital inkjet, magnetic card, light box, tape leader, IC card, signage, composite, printing, gluing, coated glass, reflective sheet, electronic board, die-cutting, printing industry, packaging industry, advertising industry, electronic industry, etc. The application is very wide.

Advantage:
1. The color is uniform, the surface is smooth and flat, and the color does not fade.
2. Odorless, tasteless, non-toxic, smooth surface, good flexibility, no water ripples on the surface, no crystal points, no double phase whitening, good impact resistance strength (good impact resistance strength at low temperature).
3. Corrosion resistance, excellent insulation, excellent mechanical properties, high rigidity, hardness and toughness, puncture resistance, friction resistance, small thickness tolerance, low thermal shrinkage rate, firmness, low shrinkage, low water absorption, smooth and shiny surface , Creep resistance, fatigue resistance, friction resistance, dimensional stability are very good, high temperature and low temperature resistance, high chemical resistance, oil resistance, good air tightness and fragrance retention, and is also a commonly used barrier property One of the composite film substrates.


Stator insulating paper sepcification


Thickness                 0.13mm-0.47mm

Width                         5mm-100mm

Thermal class                  F

Working temperature 155 degree

Color                         Yellow



PMP insulation paper

PMP insulation paper supplier

PMP insulation paper manufacturer



Properties

Unit

Parameter

Insulation paper thickness

MM

0.09

0.11

0.15

0.19

0.20

0.23

0.25

0.30

0.36

0.41

Thickness deviation

MM

±0.01

±0.01

±0.02

±0.02

±0.02

±0.02

±0.03

±0.03

±0.04

±0.04

Grammage and deviation

GSM

93±9

113±11

183±18

218±22

253±25

288±29

308±31

393±39

463±46

533±53

Film thickness

MM

0.036

0.050

0.100

0.125

0.150

0.175

0.190

0.250

0.300

0.350

Breakdown voltage

KV

5

6

9

10

11

13

14

16

18

22

Tensile strength (MD)

N/CM

60

80

150

190

220

250

280

330

350

380

Tensile strength (TD)

N/CM

40

70

110

140

150

160

180

280

300

330

Tensile strength after folding (MD)

N/CM

40

70

110

140

165

190

240

280

300

330

Tensile strength after folding (TD)

N/CM

20

50

90

110

115

120

130

180

200

230





Information needed for insulation material inquiry

It will be better if customer could send us detailed drawing including below information.

a. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, NHN , NMN ,PM ,Red Vulcanized Fiber,)

b. Insulation material dimension: width, thickness, tolerance.

c. Insulation material thermal class: Class F, Class E, Class B, Class H , Class C

d. Insulation material applications

e. Required quantity: normally its weight

f. Other technical requirement.



We also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc

electrical insulation material motor winding insulation paper wedge



Besides, we can supply the full range of motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper material, shaft, magnet, fan, motor cover,etc.

motor part, motor components, motor accessories
