Model: NDPJ-HXQ-1016
The commutator type includes hook type, groove type, plate type commutator, more than 1,000 kinds of fan shapes, and more than 500 kinds of shell shapes.
Categoryes: Commutator
8P Car Wiper Motor Commutator 8x4x14.5mm Motor Accessories Electrical Collector Part
The commutator is a car wiper motor accessory. We can also design and produce commutators according to customers' special requirements.
We participate in the design and manufacture of various motor commutators, and supply a variety of motor commutator accessories to global customers. The commutator type includes hook type, groove type, plate type commutator, more than 1,000 kinds of fan shapes, and more than 500 kinds of shell shapes.
Our commutators are suitable for automobiles, motorcycles, power tools, garden tools, industrial motors, home appliances and other special industries.
Car Wiper Motor Commutator Details
| Product Name: | Car Wiper Motor Commutator |
| Size: | 8x4x14.5mm or Customized |
| Material: | Silver /copper /mica/ plastic |
| Bar: | 8 |
| Color: | Standed color |
| Type: | Hook Commutator, Segmented Commutator, Plane Commutator |
| MOQ: | 10000 Piece |
| Delivery time: | According to the order quantity |
Car Wiper Motor Commutator Features
1. Resin surface no crack, bubble, etc.
2. Dielectric strength: bar-bar 500VAC, 1s, bar-shaft 4800VAC, 1MIN, no break down or flash
3. Spin test: 180°, 33000rpm, 3min, OD deviation 0.01max, bar-shaft deviation 0.005max
4. Insulation resistance: room temperature, 500VDC mega meter, insulation resistance >100MΩ
5. Unmarked tolerance accord with GB/T1804-m

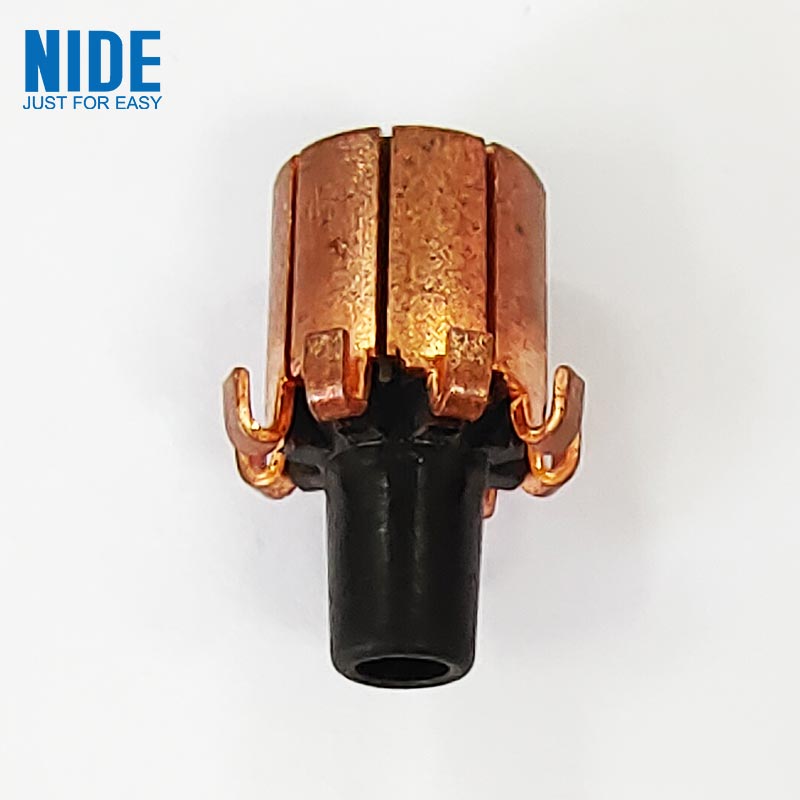

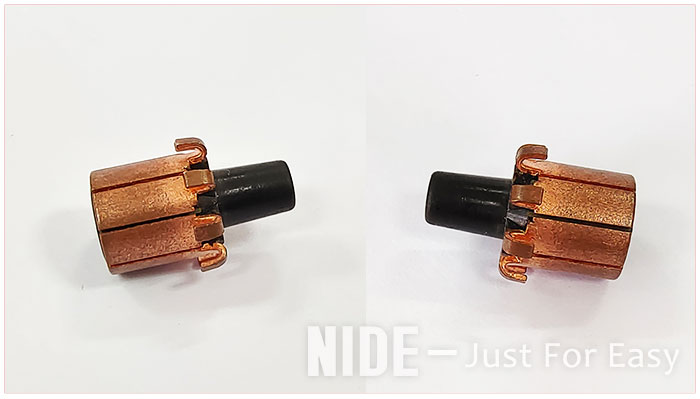

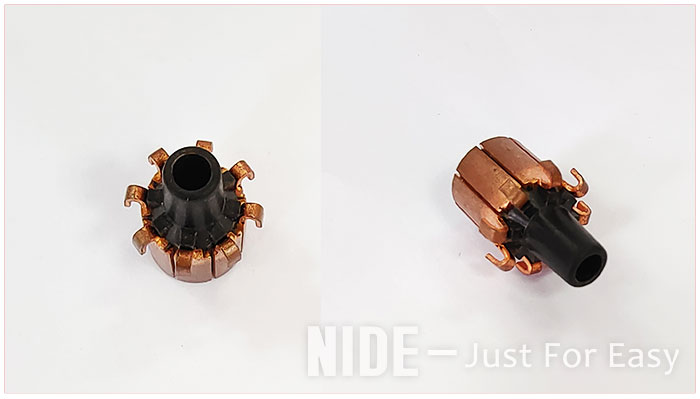

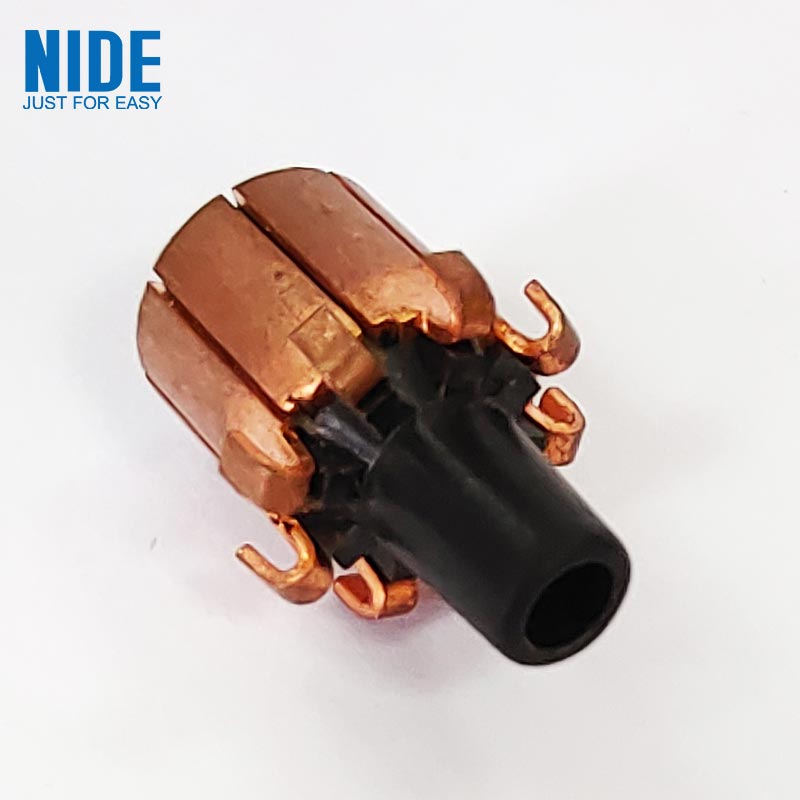

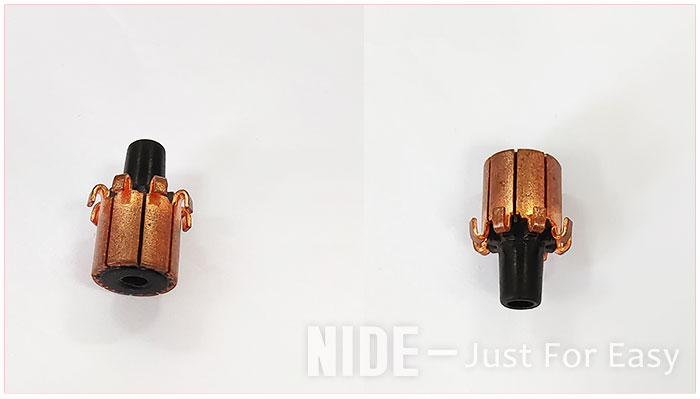

Car Wiper Motor Commutator Pictures
Nide produces more than 1200 different types of motor commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.
Besides, we can supply the full range of motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper material, shaft, magnet, fan, motor cover,etc.
