Electric Copper Collector Motor Commutator

 Model: NDPJ-HXQ-1017



This commutator is a power tool motor accessory, suitable for electric wrench, electric pick, electric hammer.



Categoryes: Commutator

CONTACT US
Details

5x10x18mm Electric Copper Collector Motor Commutator For Mini Drill Motor Armature


This commutator is a power tool motor accessory, suitable for electric wrench, electric pick, electric hammer, angle grinder and so on. We can design and produce commutators according to customers' special requirements.


We participate in the design and manufacture of various motor commutators, and supply a variety of motor commutator accessories to global customers. The commutator type can provide hook type, groove type, plate type commutator, more than 1,000 kinds of fan shapes, and more than 500 kinds of shell shapes. Our commutator is suitable for automobiles, motorcycles, electric tools, garden tools, industrial motors, home appliances and other special industries. If you need, please feel free to contact us.



Mini Drill Motor Commutator Parameter

Product Name:  Mini Drill Motor Commutator

Size:         5x10x18mm or Customized

Material:         Silver /copper /mica/ plastic

Bar: 8

Color:      Standed color

Type:         Hook Commutator, Segmented Commutator, Plane Commutator

MOQ:       10000 Piece

Delivery time:  According to the order quantity

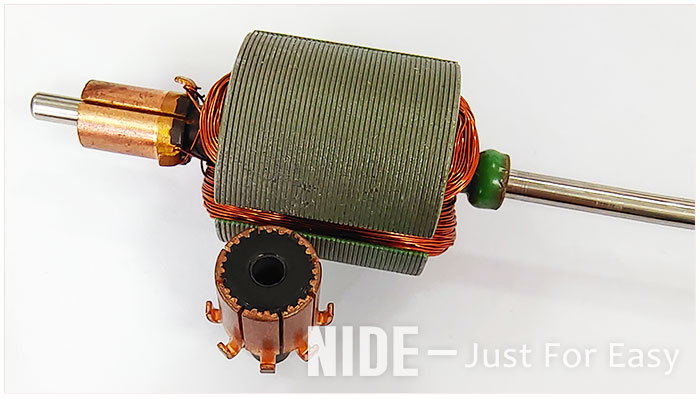

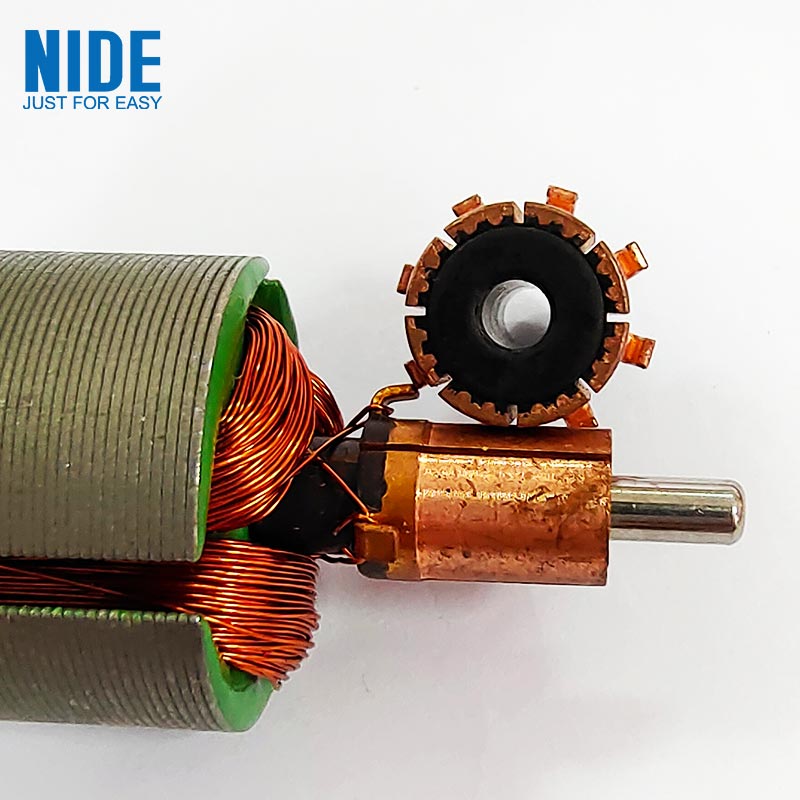

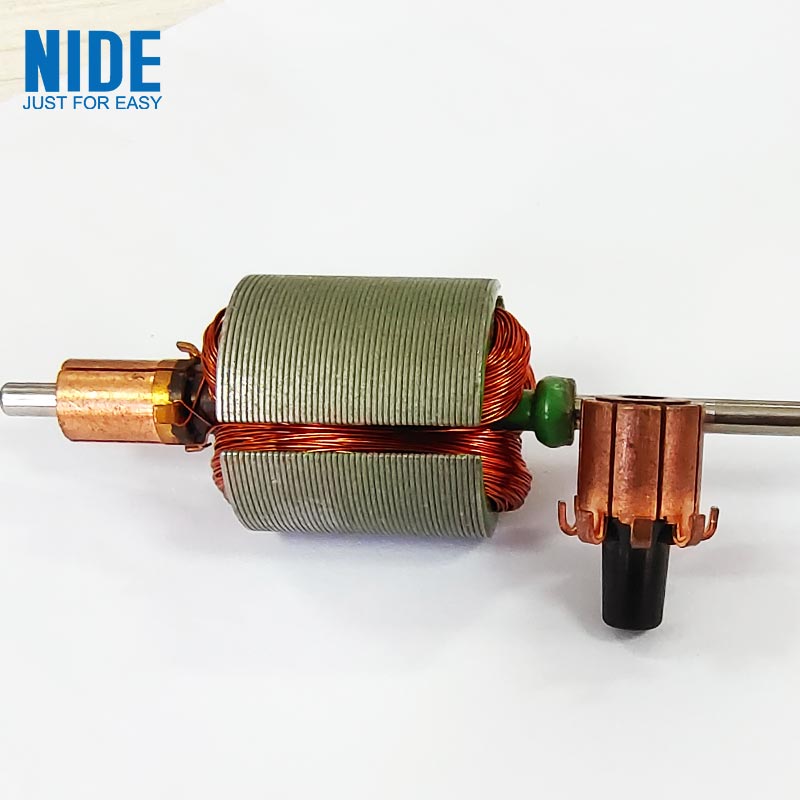

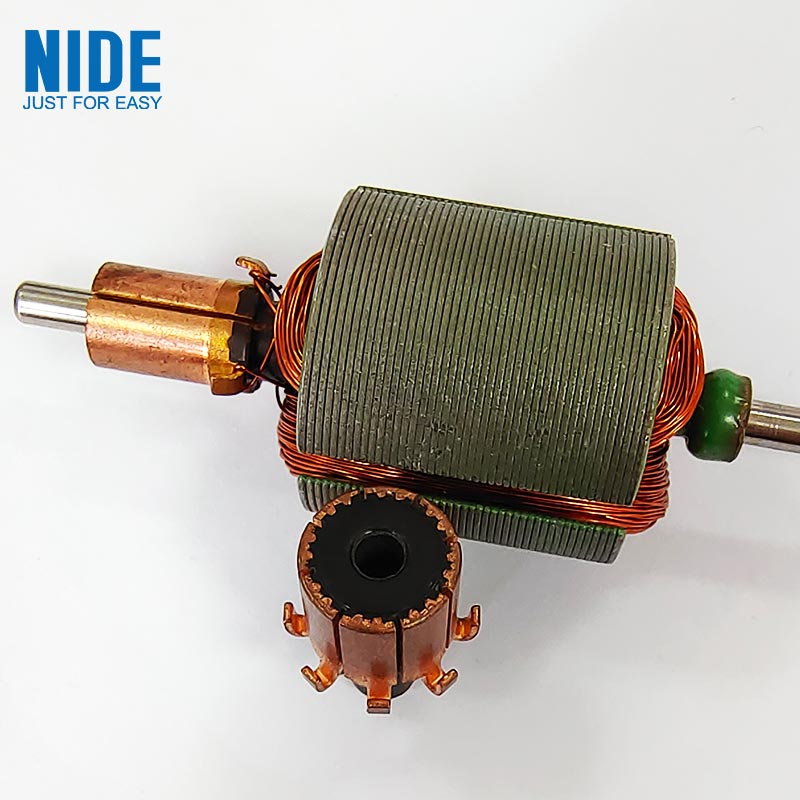

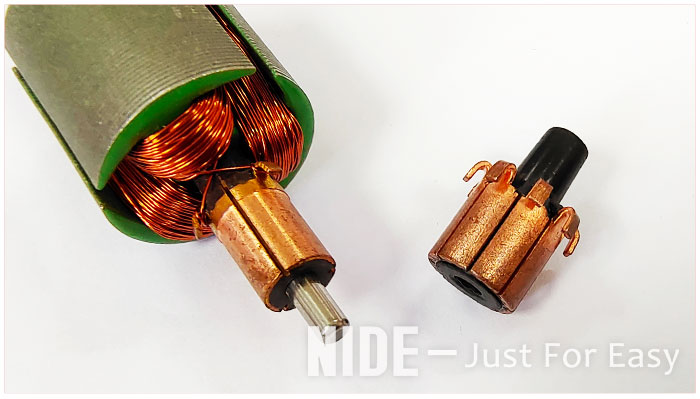

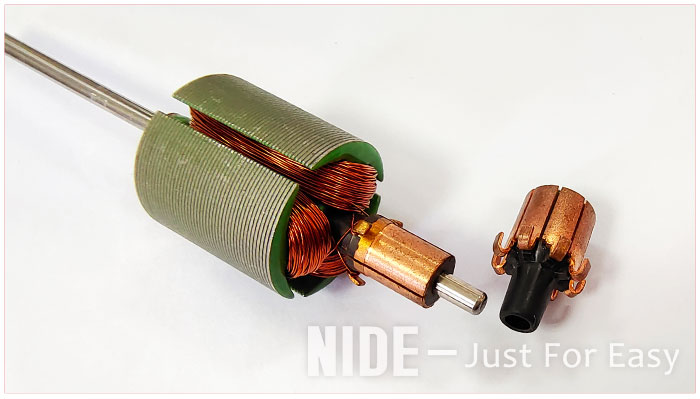

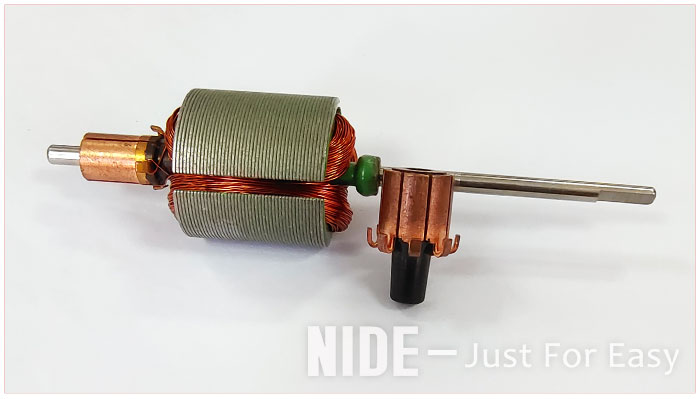

Mini Drill Motor Commutator Pictures

motor commutator

electrical commutator

mini drill motor commutator collector

wholesale motor commutator

Mini Drill Motor Commutator Features

1. Resin surface no crack, bubble, etc.

2. Dielectric strength: bar-bar 500VAC, 1s, bar-shaft 4800VAC, 1MIN, no break down or flash

3. Spin test: 180°, 33000rpm, 3min, OD deviation 0.01max, bar-shaft deviation 0.005max

4. Insulation resistance: room temperature, 500VDC mega meter, insulation resistance >100MΩ



5. Unmarked tolerance accord with GB/T1804-m



Nide produces more than 1200 different types of motor commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.





Besides, we can supply the full range of motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper material, shaft, magnet, fan, motor cover,etc.

motor part, motor components, motor accessories
