Electric Motor Collector Commutator In Dc Motor

NIDE International is specialized in researching, developing and manufacturing hook commutator , slot commutator, segmented commutator and flat commutator for DC motors and universal motors.

Our commutator is widely apply to automotive industry, , household appliances, wind power generation,power tools new energy industry and other motors. We can customize commutator as per customer’s requirement, provide customers with advanced commutator manufacturing technology, first class quality and best service.

Electric Motor Collector Commutator Details

Technical specification

1.    resin surface, free of bubble and crack

2.    spin test: 200℃, 3000r/min, 3min, radial deviation ＜0.015, bar to bar ＜0.006.

3.    High voltage test: bar to shaft at 3500V for 1 min, bar to bar at 550V for 1 s.

4.    Insulation test at 500V, ＞50MΩ

5.    Copper material: sliver copper or electrolytic copper or customized

6.    Dimension: from OD 4mm to OD 150mm. We also provide customized commutator.

7.    Application: apply to automotive industry, power tools, household appliances, and other motors

8.    Commutator type: hook type, riser type, shell type or planar type

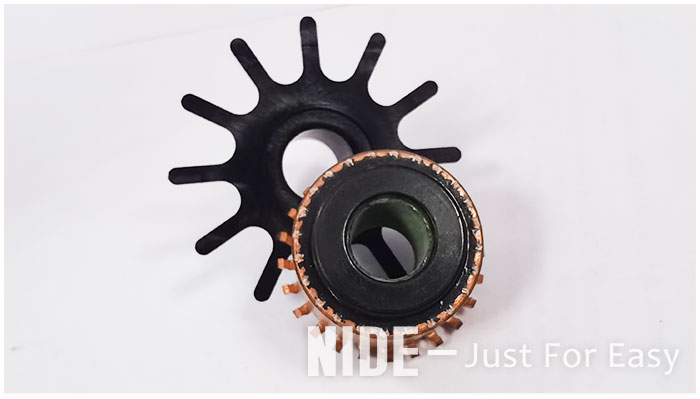

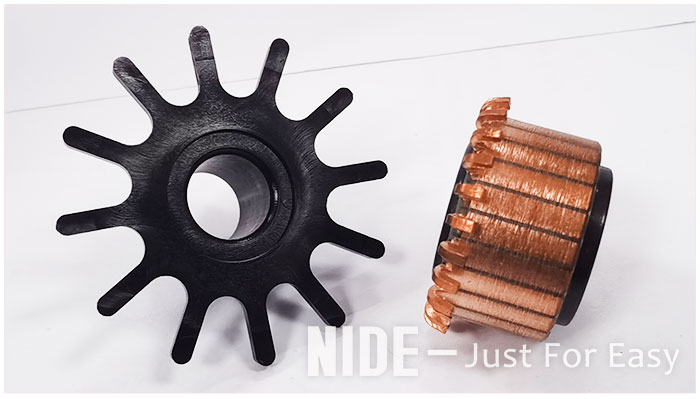

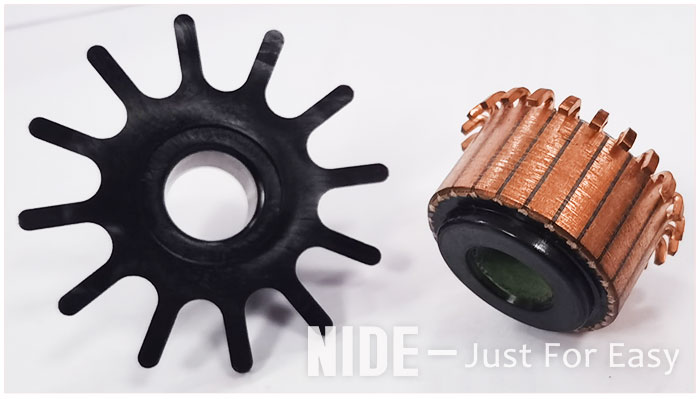

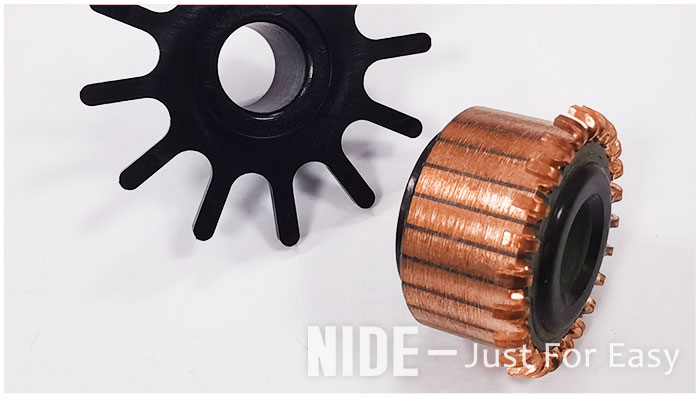

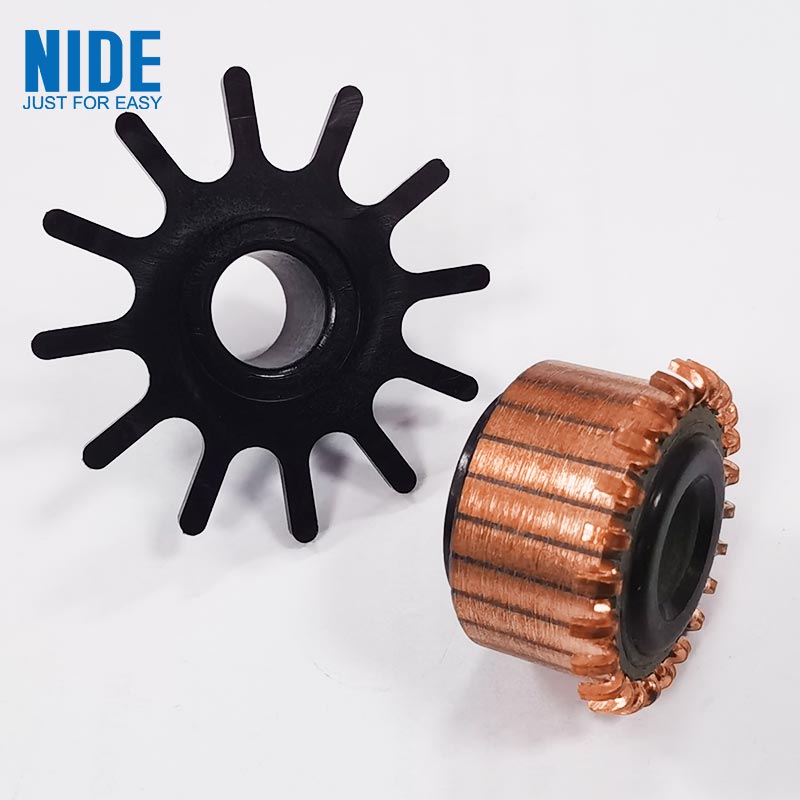

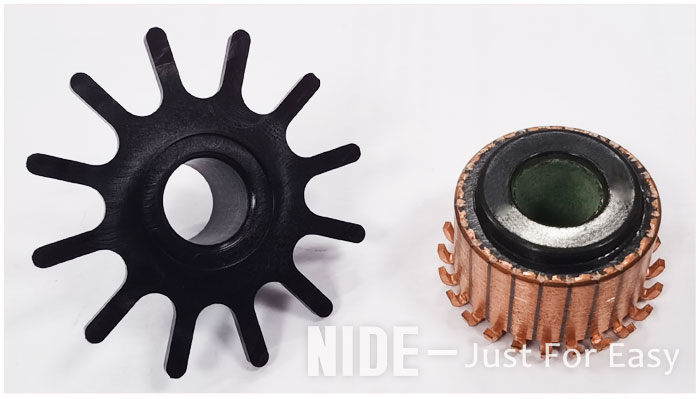

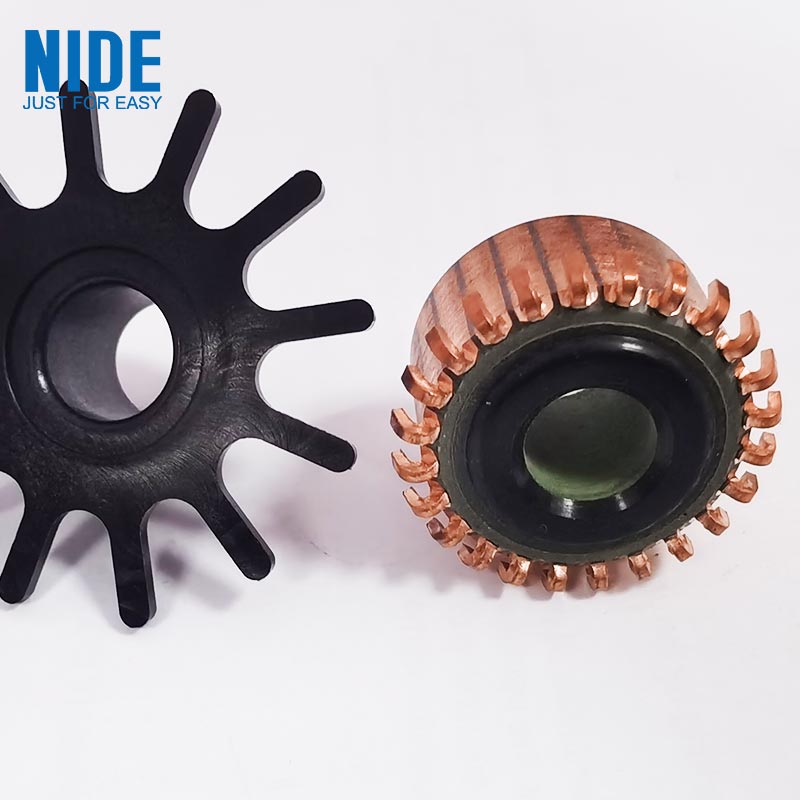

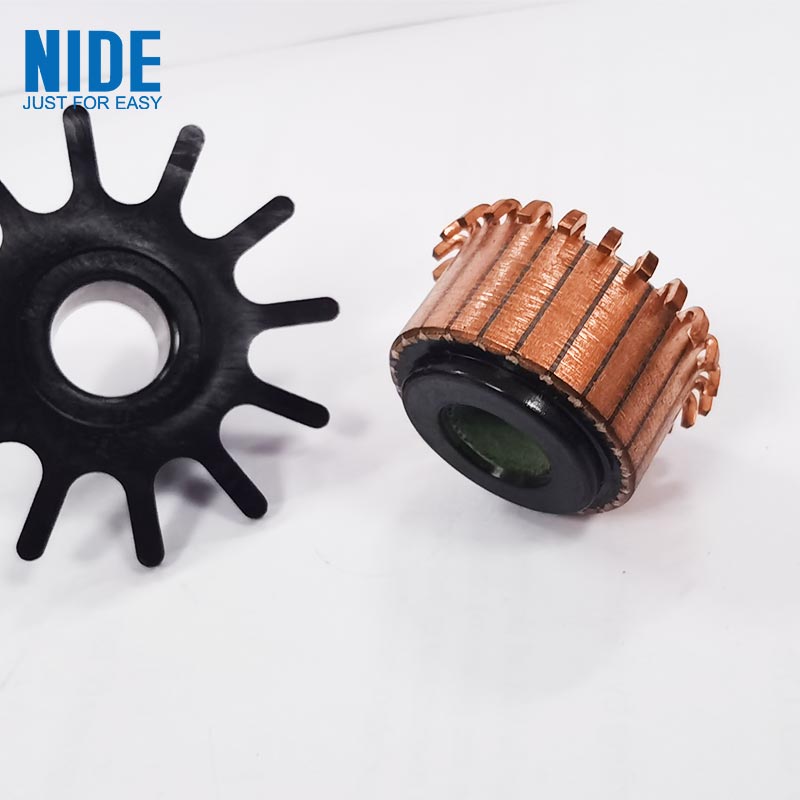

Electric Motor Collector Commutator Show

Nide produces more than 1200 different types of motor commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.

Besides, we can supply the full range of motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper material, shaft, magnet, fan, motor cover,etc.
